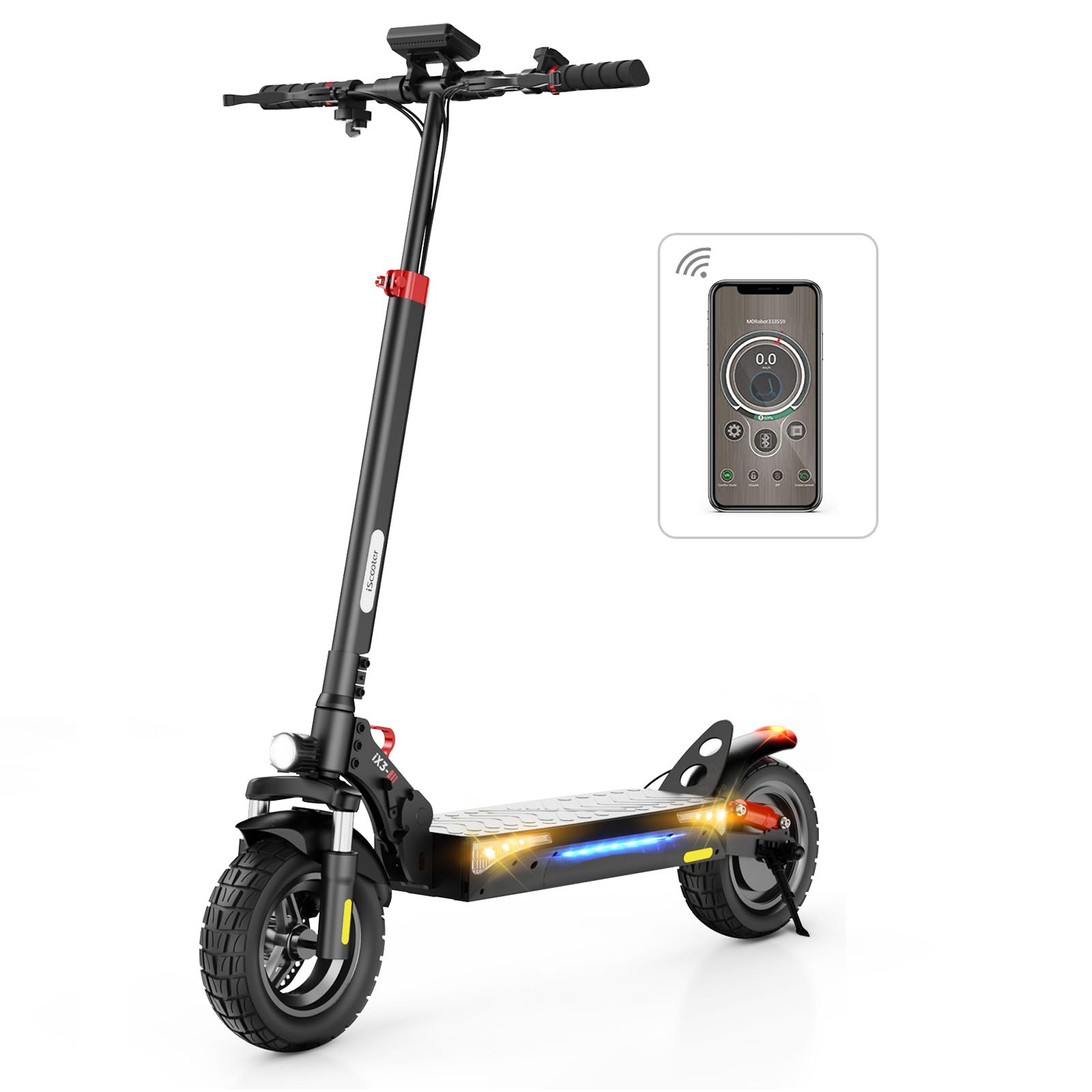

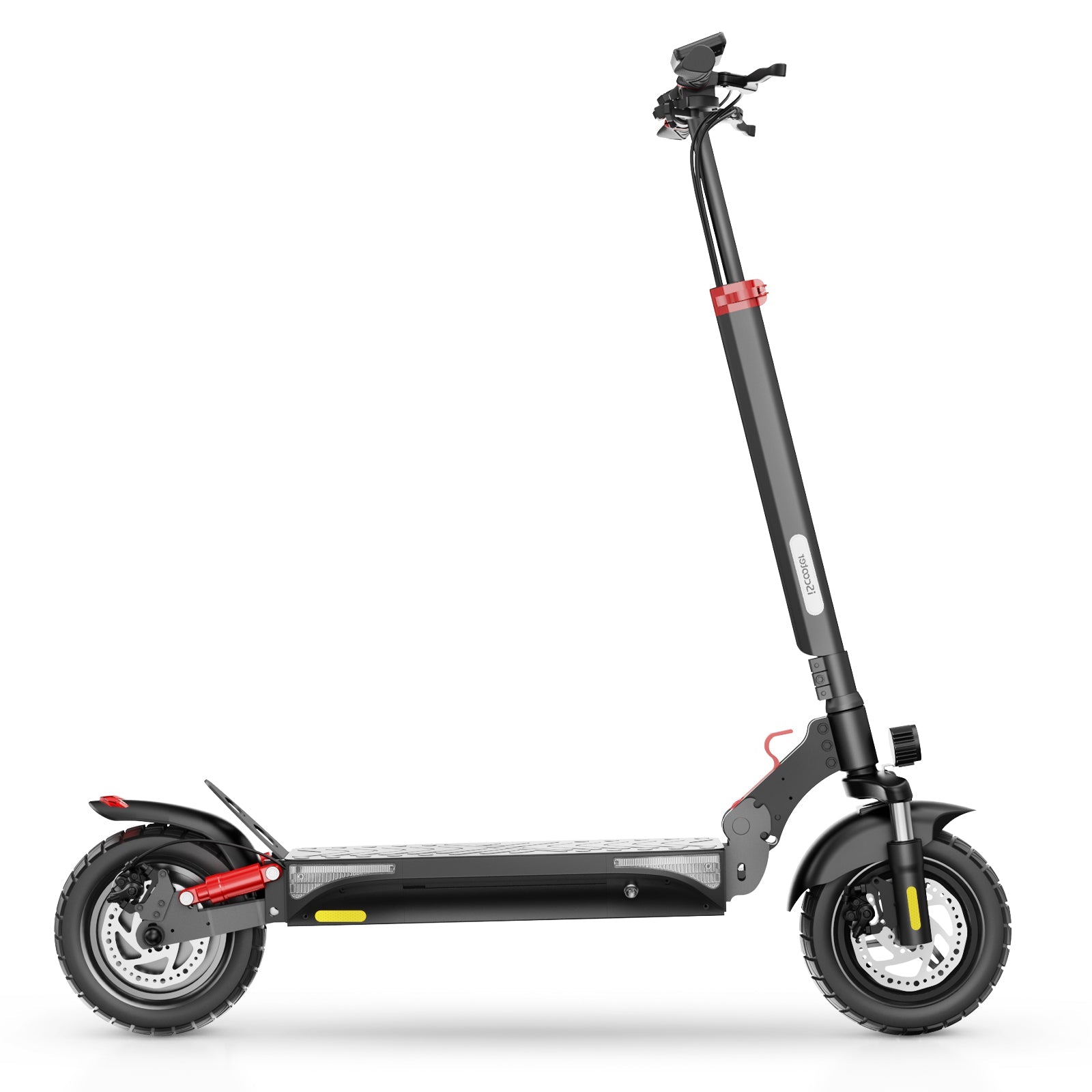

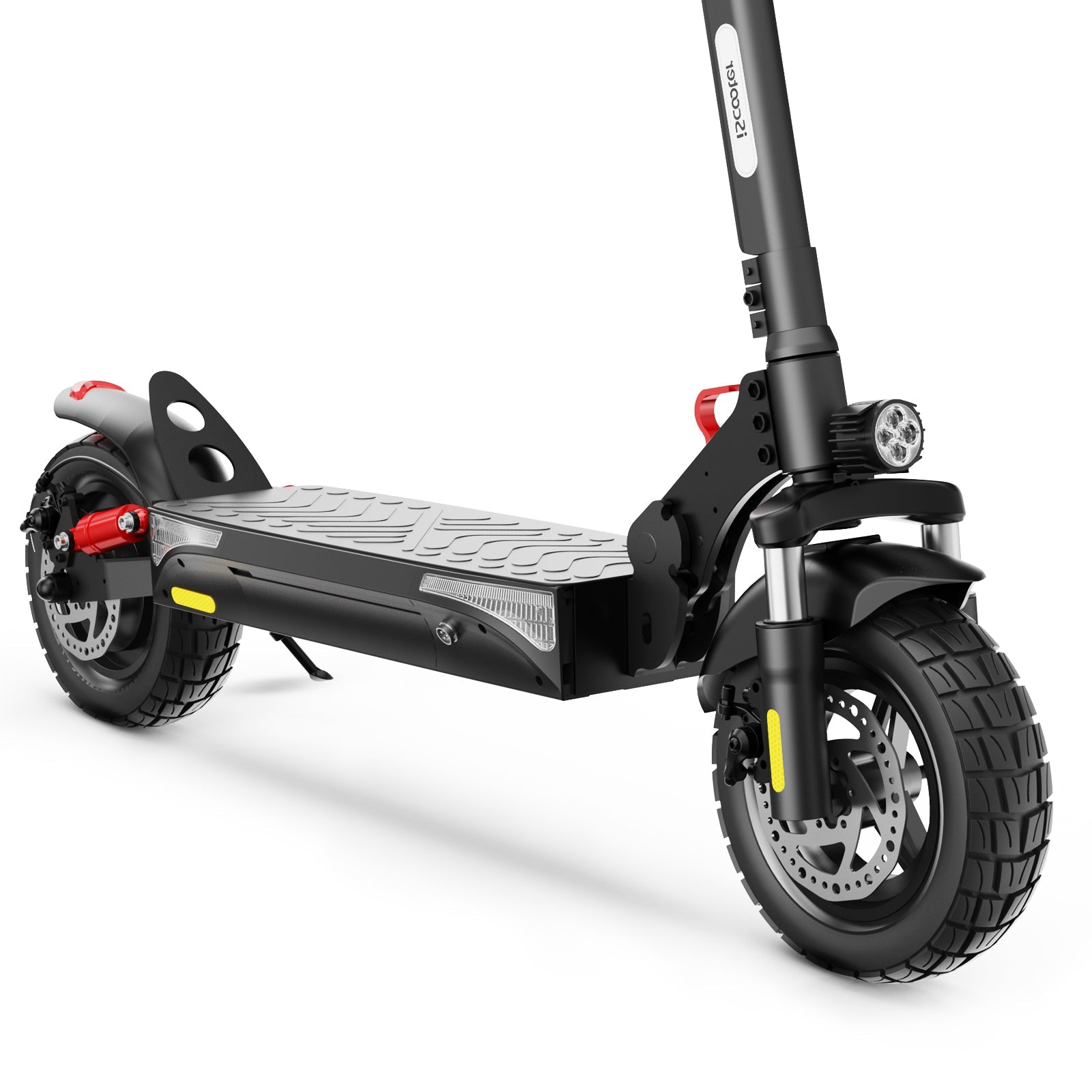

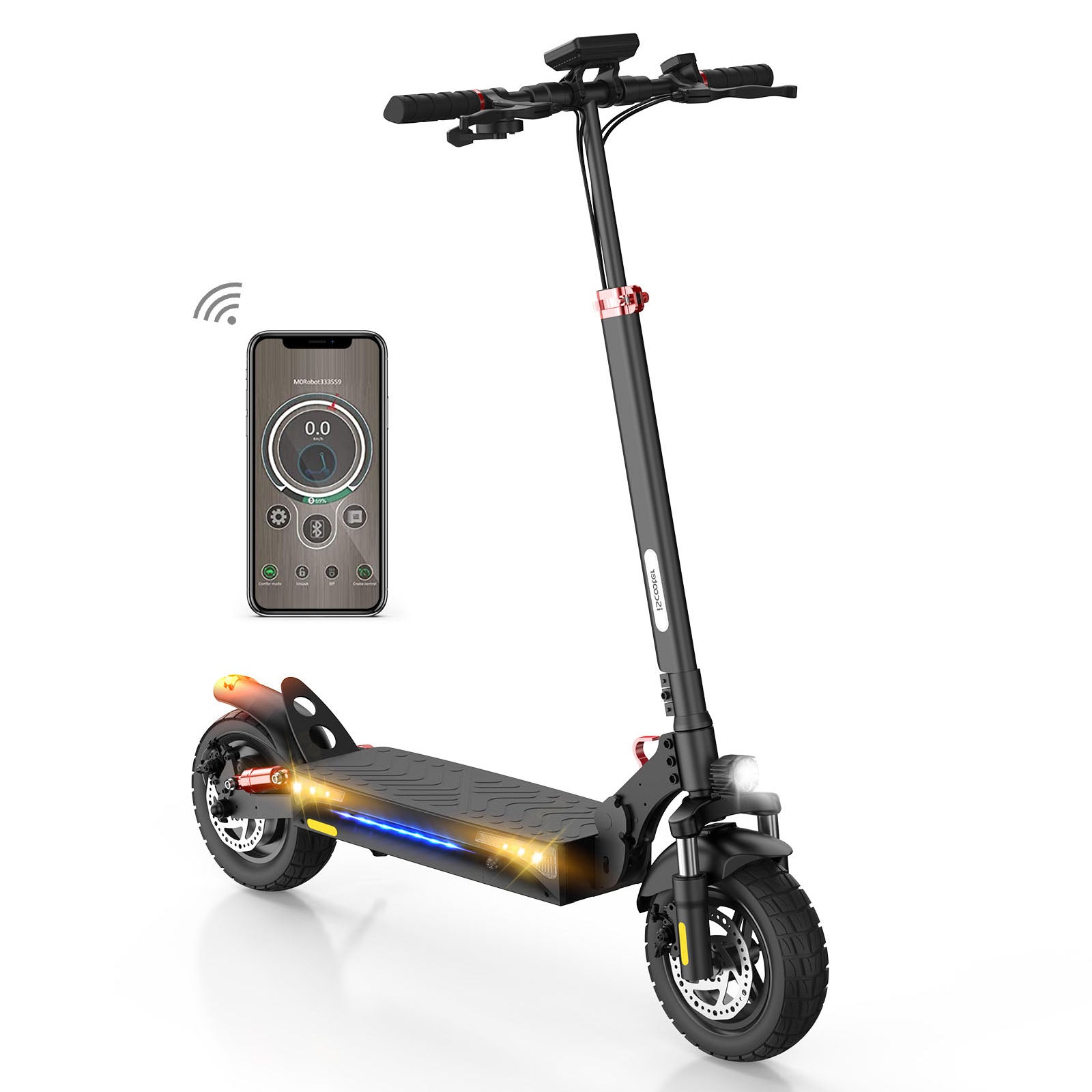

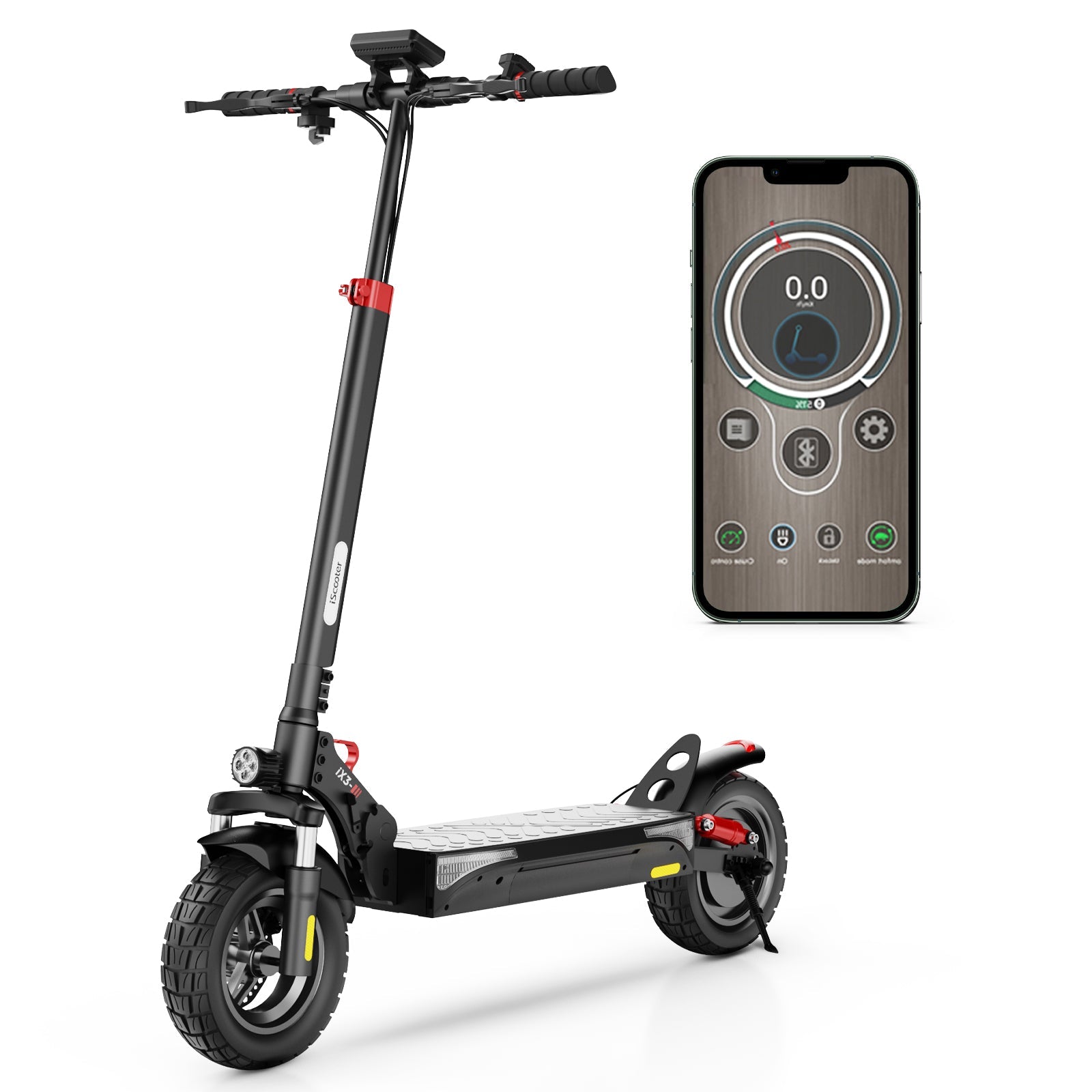

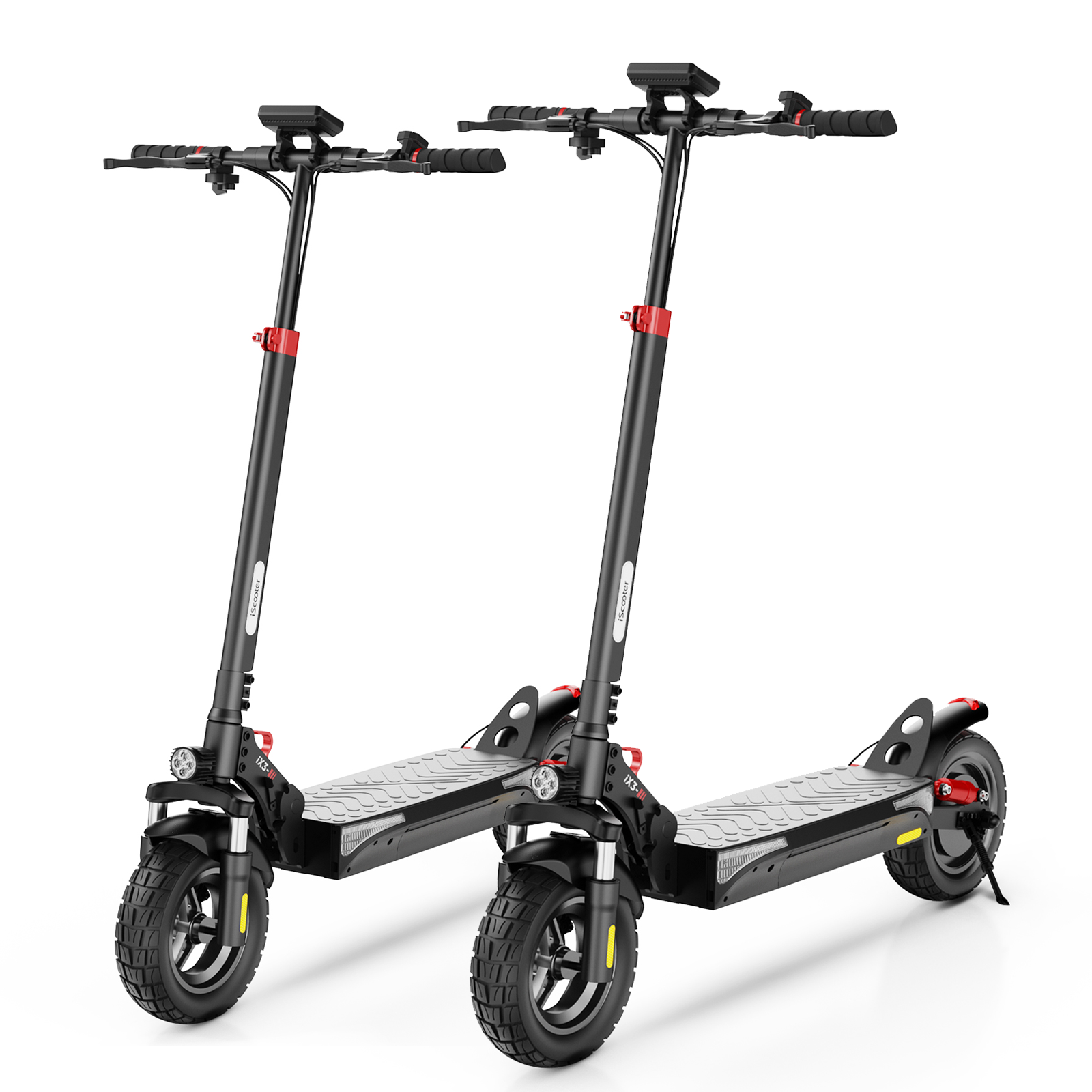

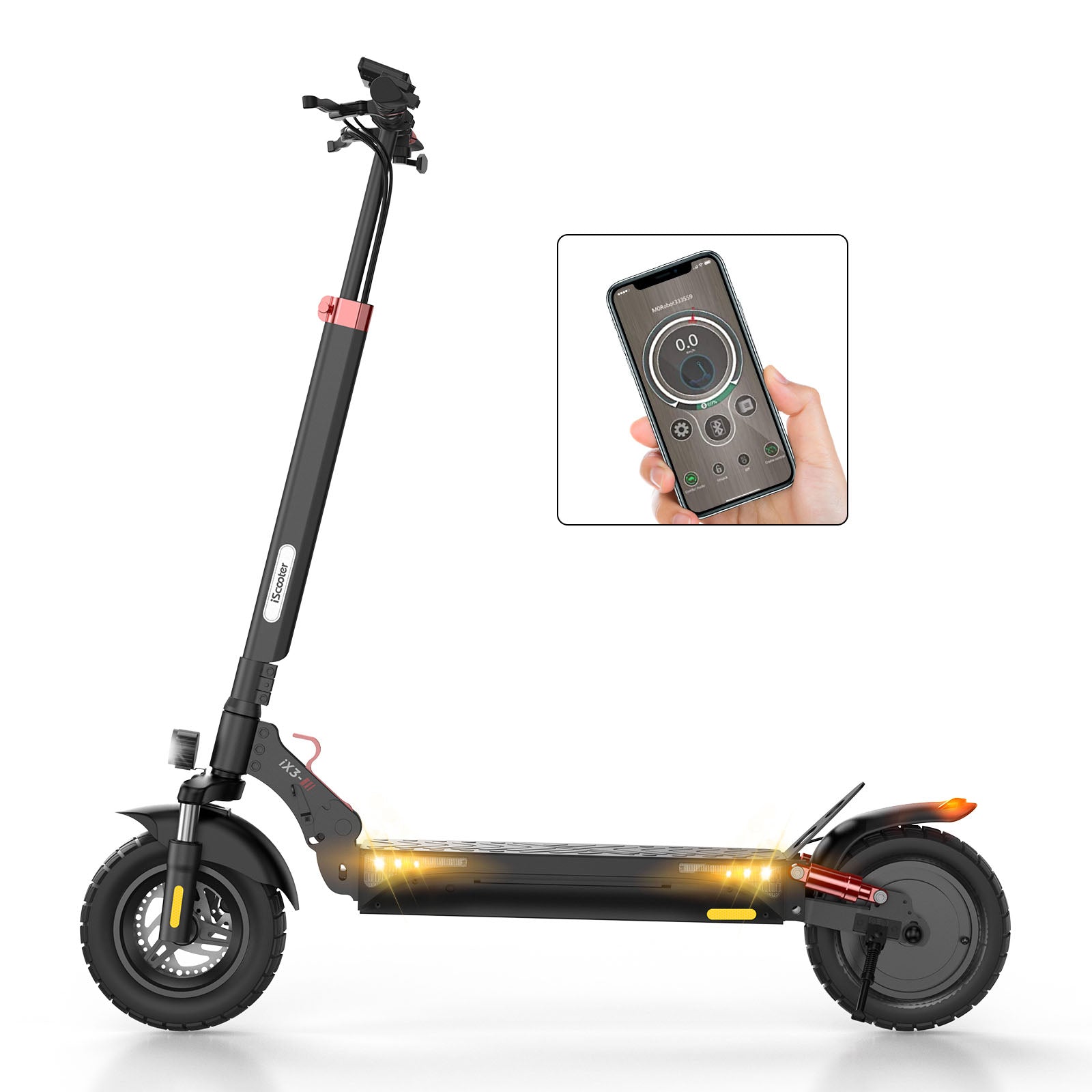

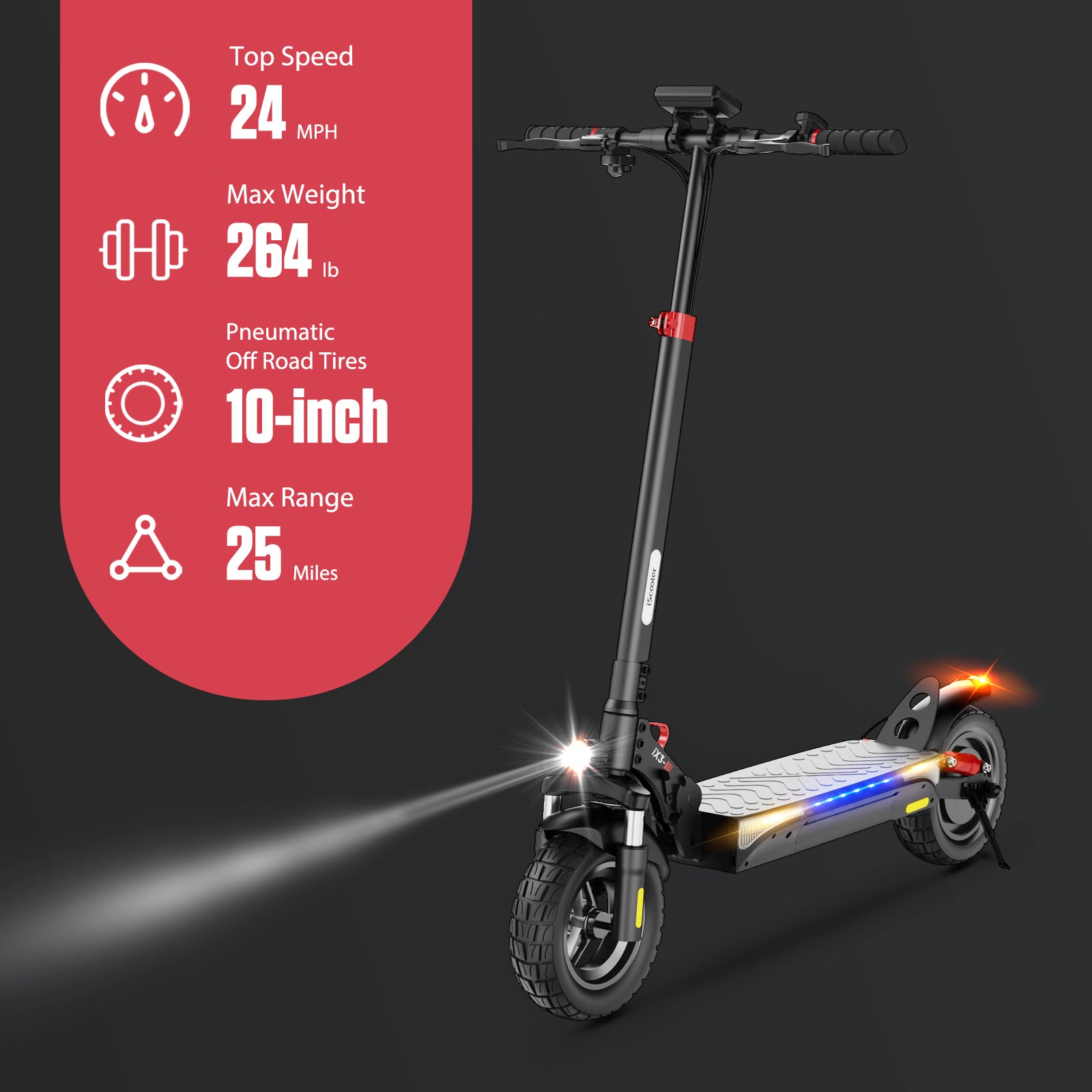

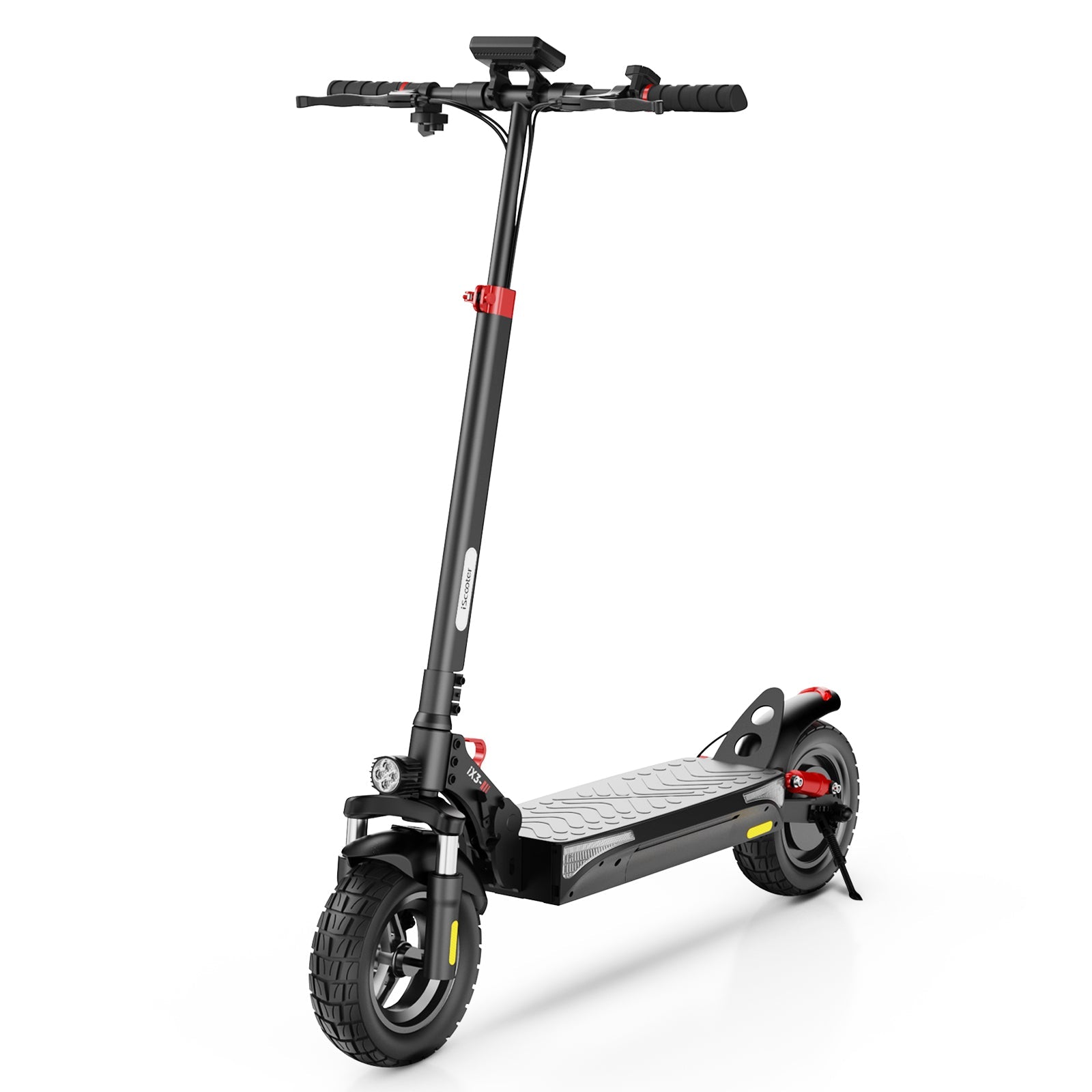

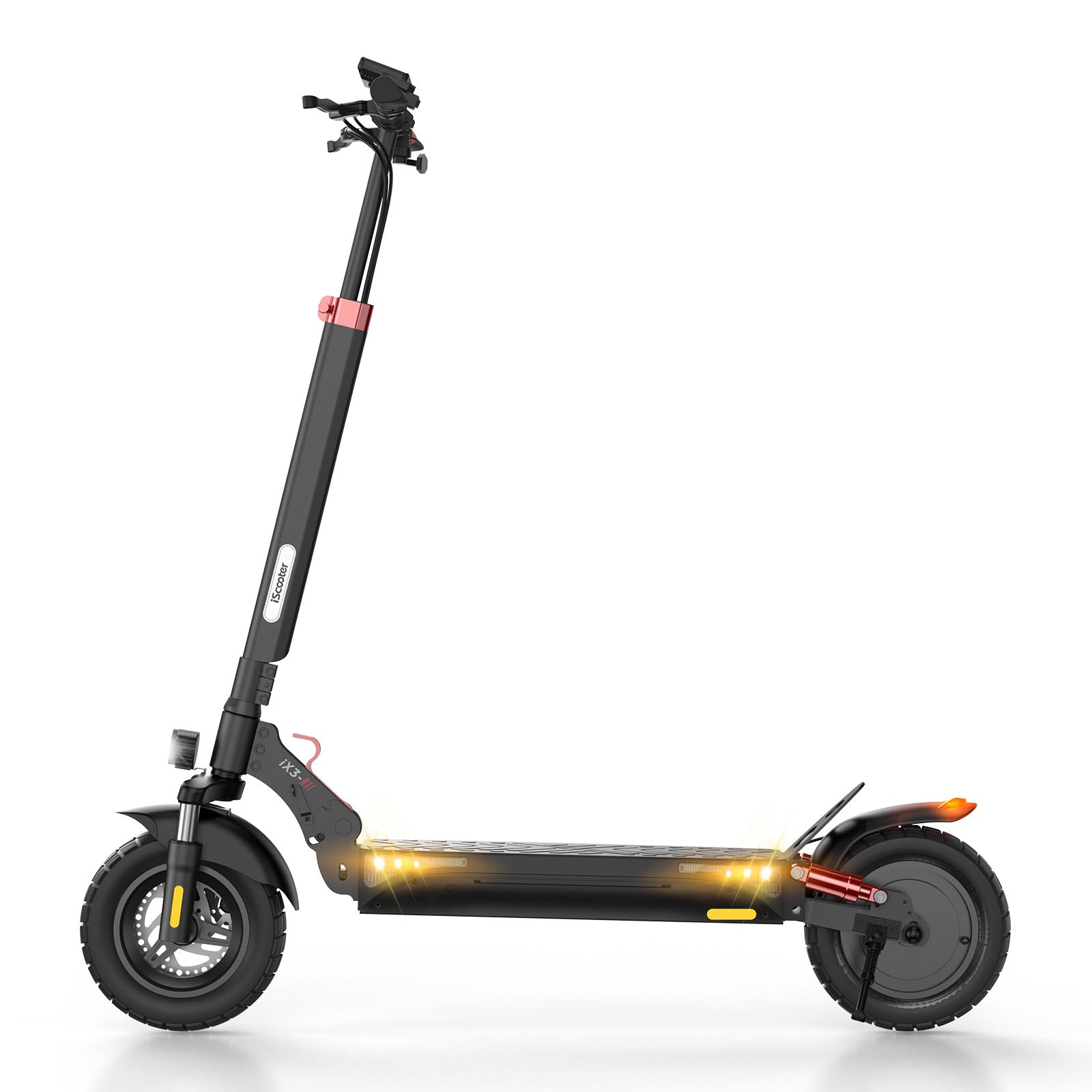

iScooter® iX3 800W Off Road Electric Scooter
In accordance with UL 2272
Cover all e-scooter purchases
800W
Motor Capacity
48V 10Ah
Battery Capacity
25 MPH
Speed
6-7 Hours
Charging Time
25 Miles
Range
264 Lbs
Max Load
-
iX3 Parameters Max Speed 25 mph (40 km/h) Max Range 25 miles / 40 km Climbing angle 25° Shock absorption Dual front and rear suspension Water resistance IPX4 Dimensions and Weight Product dimension - Unfolded 47*23*50 IN / 120*65*128cm Product dimension - Folded 47*8*19 IN / 120*20*50cm Net weight 52.2lbs (23.25kg） Battery Battery capacity 48V 10Ah 720Wh Charging time 6-7 H Smart Battery Management System Yes Motor Maximum power 800 W Wheel drive Rear wheel Brakes Front Brake Mechanical disc brake + electric brake Rear Brake Mechanical disc brake + electric brake Lights Lights Front LED + Rear LED lights Brake lights Yes (Flashing) Turn lights Yes Ambient lights Yes Tyres Tyres type Off Road Pneumatic Tire
Tyres size 10 inches/25.4cm Connectivity App monitor Yes Bluetooth Yes Rider Minimum age 16+ years Max. rider weight 264 lbs (110kg) Other Functions Folding mechanism Easy 3 steps folding (require hand) Info display LED Display Information on LED Screen Current Speed, Battery level, Cruise control, Headlight, which mode is activated, maintenance, Temperature, turn signal indicator headlight on/off, Trip distance, etc Riding modes 3 Riding modes (Eco-10km/h, Drive-18km/h and Sport modes-25km/h) Cruise Control Yes Bell Yes, electronic horn NFC technology (for un/lock) No Certified reflectors Yes (front, rear and side E-MARK reflectors) -
At iScooter Electric we are passionate about providing dedicated customer support, so you get total peace of mind with every electric scooter.
Q1.How long does it take to deliver?
The United States delivery time is 2-5 business days. We are working hard to ensure all orders arrive in a prompt and timely manner.Countries Cost Shipping Time Ship By Western United States FREE 2-4 Business Days UPS / FEDEX Eastern United States FREE 3-5 Business Days UPS / FEDEX
Q2:The front light and screen will be automatically shut off?
A:To save and protect the battery, when the scooter is stationary for 5-10 minutes, it will automatically enter power-save modes and turn off.
Q3:Unable to accelerate?
A:1. For your safety, by default, we designed for this, "Non-zero startup", it only needs one initial speed to start. Or you can connect "Minibot" APP, then, if you turn on Zero Start. 2. Error code (visible on LCD), please contact us to replace a throttle.
Q4:Motor hall Faults?
A:Take off the screws on the bottom of the scooter, then check the controller and replug the hall wire connecting terminal.
Q5:Controller Faults?
A:Take off the screws on the bottom of the scooter, then check and replug the controller connecting terminal.
Q6:Unable to power on?
A:1. Unplug your charger from the port, then click the power button to turn on your scooter. 2. Use the multimeter to measure the voltage of the battery, if the voltage is from 30-42V, it means there is no problem with the battery. If the voltage is lower than 30V, the scooter maybe not be turned on.
Q7:Not charging?
A:1. Check your charging cable and charging port for signs of damage, like breakage. Don't use damaged accessories. 2. Use the 220V ACA of the multimeter to measure the voltage of the charger and charger port, if there isn't reading, your scooter probably needs to replace the charger or charger port. if there is a reading, it probably needs to replace the battery.
Q8:Scooter seems to make noise?
A:It may be the disc brake noise. To remove the disc brake noise:First make sure the scooter is turned off. 1. Loosen two screws on the pump (not the screw on the rocker). 2. Adjust the position of the disc brake pump to ensure that the brake disc is in the middle of the two brake pads. 3. Keep the brake disc and brake pad not touching each other. 4. Hold the disk brake pump in the desired position, then retighten the screws to the pump. Or contact customer service to get an operation video.
Q9:The speed and range are not as same as described?
A:The speed and range will be effected by temperature of environment, the condition of road, the weight of rider(including all belongings ) -
Model
i8 i9 i9S i9Plus i9max i10 i10Max ix3 i12 iX6 R3 X3pro R3pro Motor Power
350W 350W 500W 500W 500W 650W 750W 800W 500W 800W 800W 1200W 1600W Maximum Speed
15 mph 17 mph 21 mph 16 mph 20 mph 25 mph 28 mph 25 mph 15 mph 28 mph 28 mph 28 mph 28 mph Maximum Range
12 miles 18 miles 18 miles 18 miles 19 miles 28 miles 50 miles 25 miles 21 miles 28 miles 22 miles 37 miles 31 miles Battery Capacity
5.2Ah 7.5Ah 10Ah 7.8Ah 10Ah 15Ah 15.6Ah 10Ah 7.5Ah 10Ah 15Ah 15Ah 20Ah Tires
8.5″ Pneumatic Tires 8.5″ Honeycomb Tires 10″ Pneumatic Tires 10'' Honeycomb Tires 10″ Solid Tires 10″ Pneumatic Tires 10″ Pneumatic Tires 10″ Off Road Pneumatic Tire 12″ Pneumatic Tires 11″Off Road Pneumatic Tires 10″ Off Road Solid Tire 12″ Pneumatic Tires 10″ Off Road Pneumatic Tire Driver
Front Front Rear Front Front Rear Rear Rear Rear Rear Rear Rear Dual Motors Support APP
✘ ✔ ✘ ✔ ✔ ✔ ✔ ✔ ✘ ✘ ✔ ✘ ✔ Net Weight
26.4LB / 12 KG 26 LB/ 13.4 KG 38.5 LB /17.4 KG 32.6 LB /14.8 KG 36 LB /16.3 KG 44 LB /20 KG 46.7 LB /21.2 KG 48.5 LB /22 KG 55 LBS/ 25 KG 56.9 LBS/ 25.38 KG 62.6 LBS/ 28.4 KG 48 LBS/ 21.7 KG 67.3 LBS/ 30.5 KG -
1 x iX3 Electric scooter
1 x Charger
1 x Tool Kit
1 x Allen Wrench
1 x Manual -
🚚Shipping- Free shipping on all orders to the United States, 2-5 business days delivery time.
💝 Return & Refund Guarantee- 30 Days Money Back & 12 Months Warranty.
📞Customer Support- Please email to support@iscooterglobal.com. Our experts will reply within 24 hours.
Speed And Climbing Power

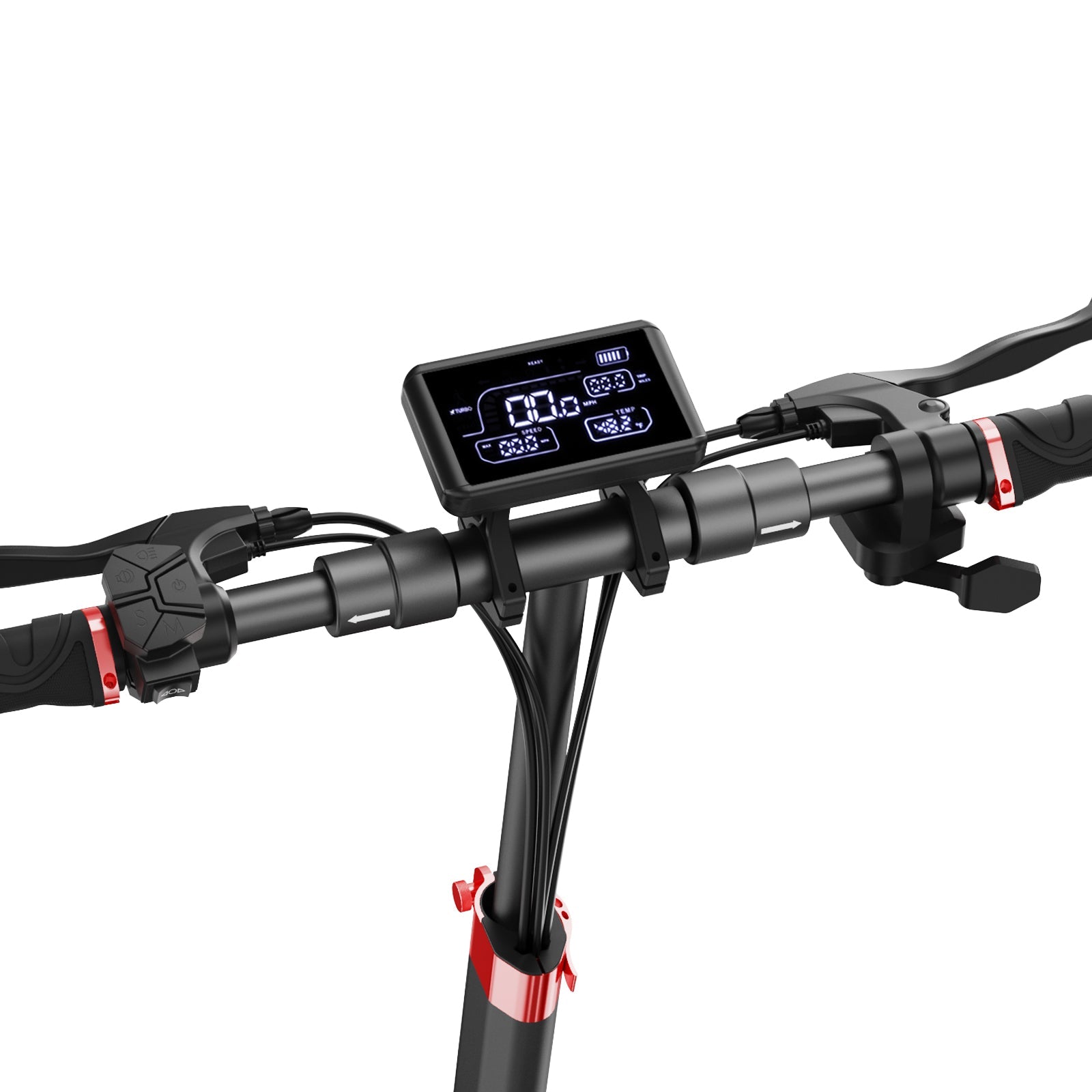

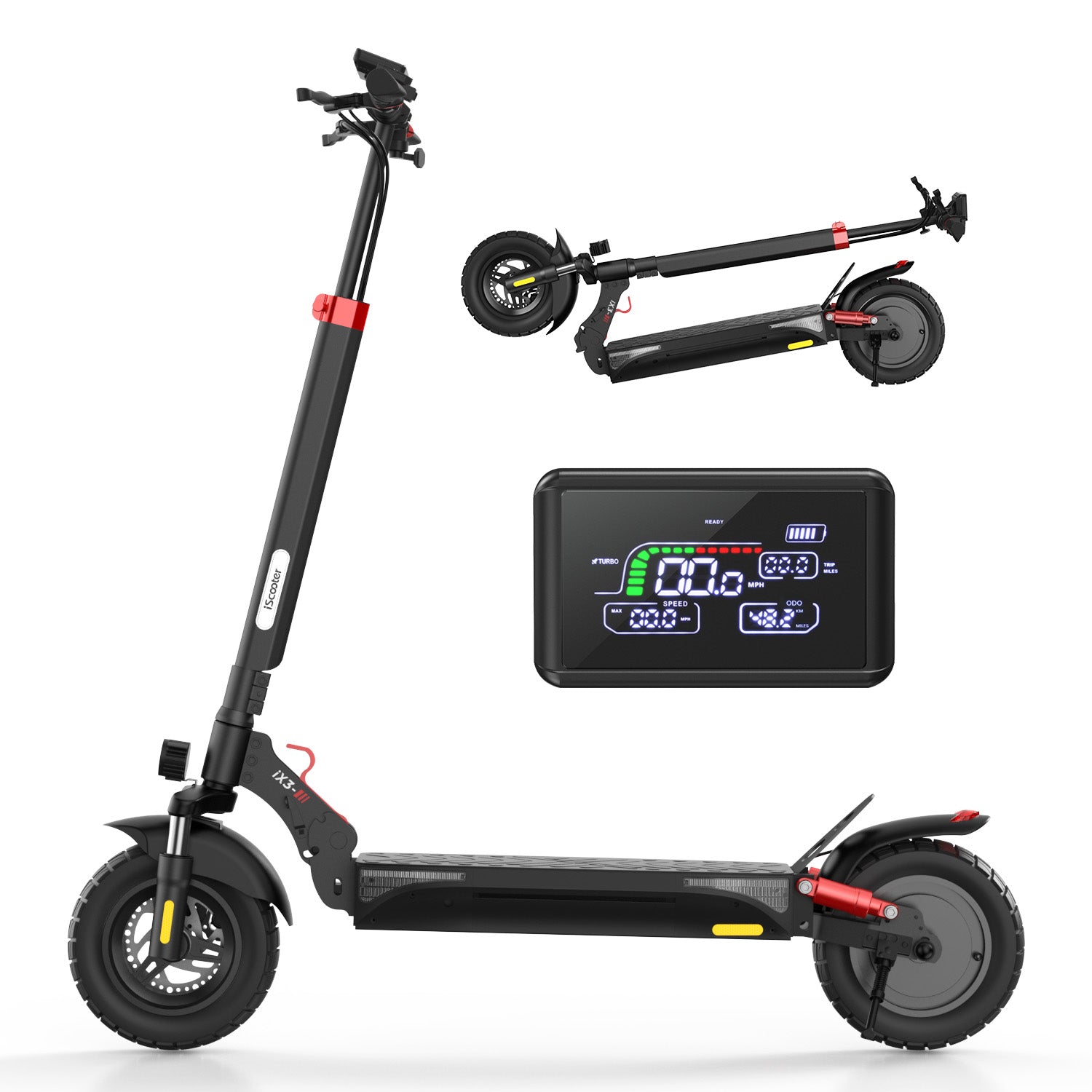

LED Display with Multi-function Console

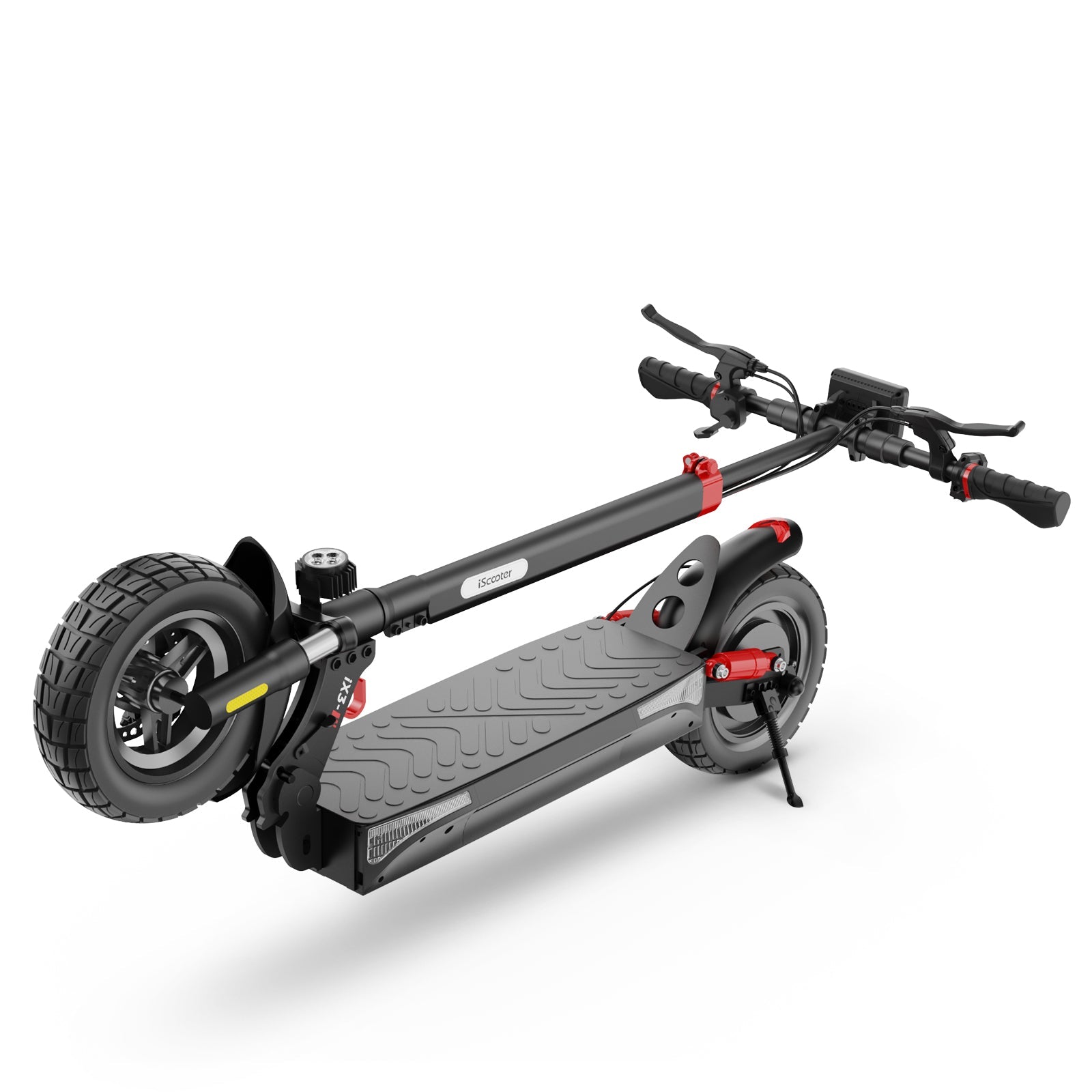

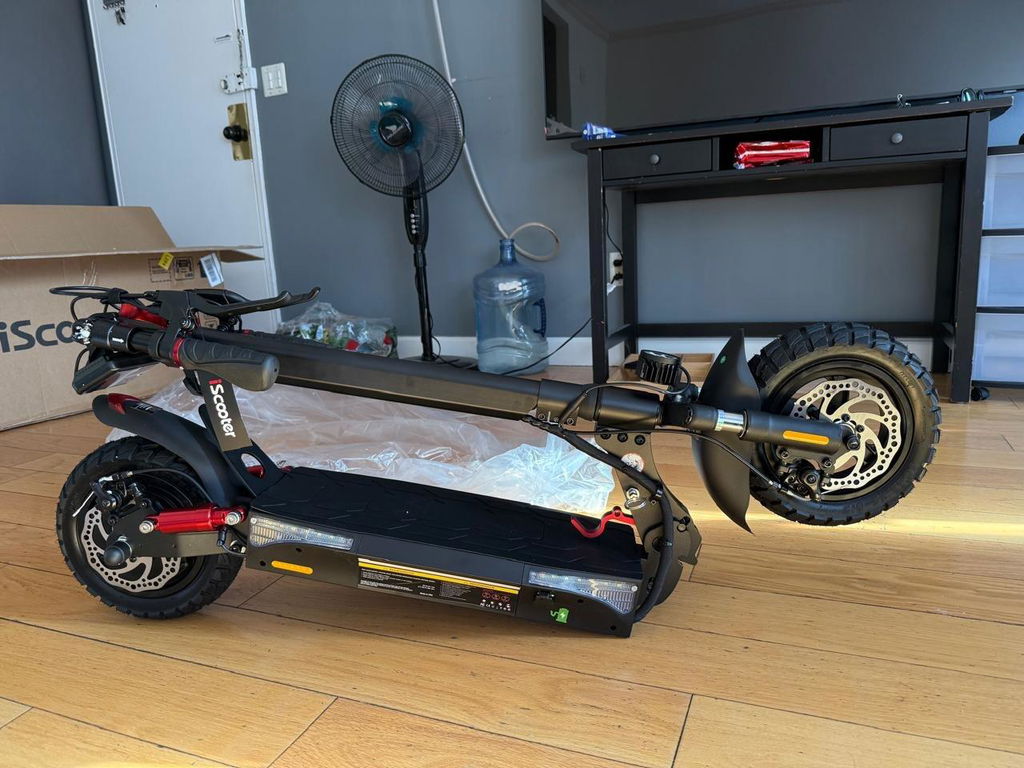

Fold in 3 Easy Steps

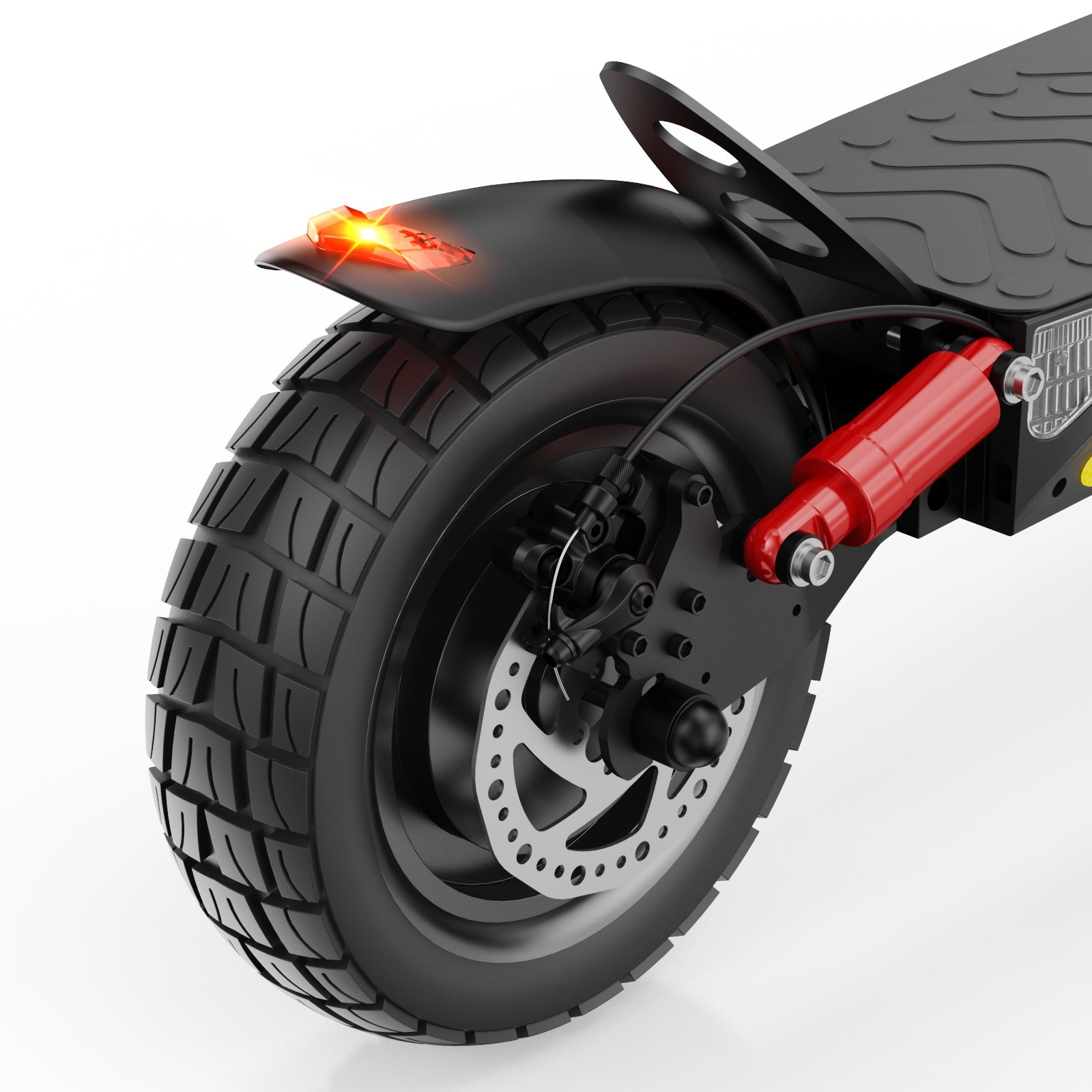

Dual Braking System
Equipped with dual disc brakes and electric brake, the braking effect is very sensitive and strong, and it is still reliable on rainy and muddy roads.

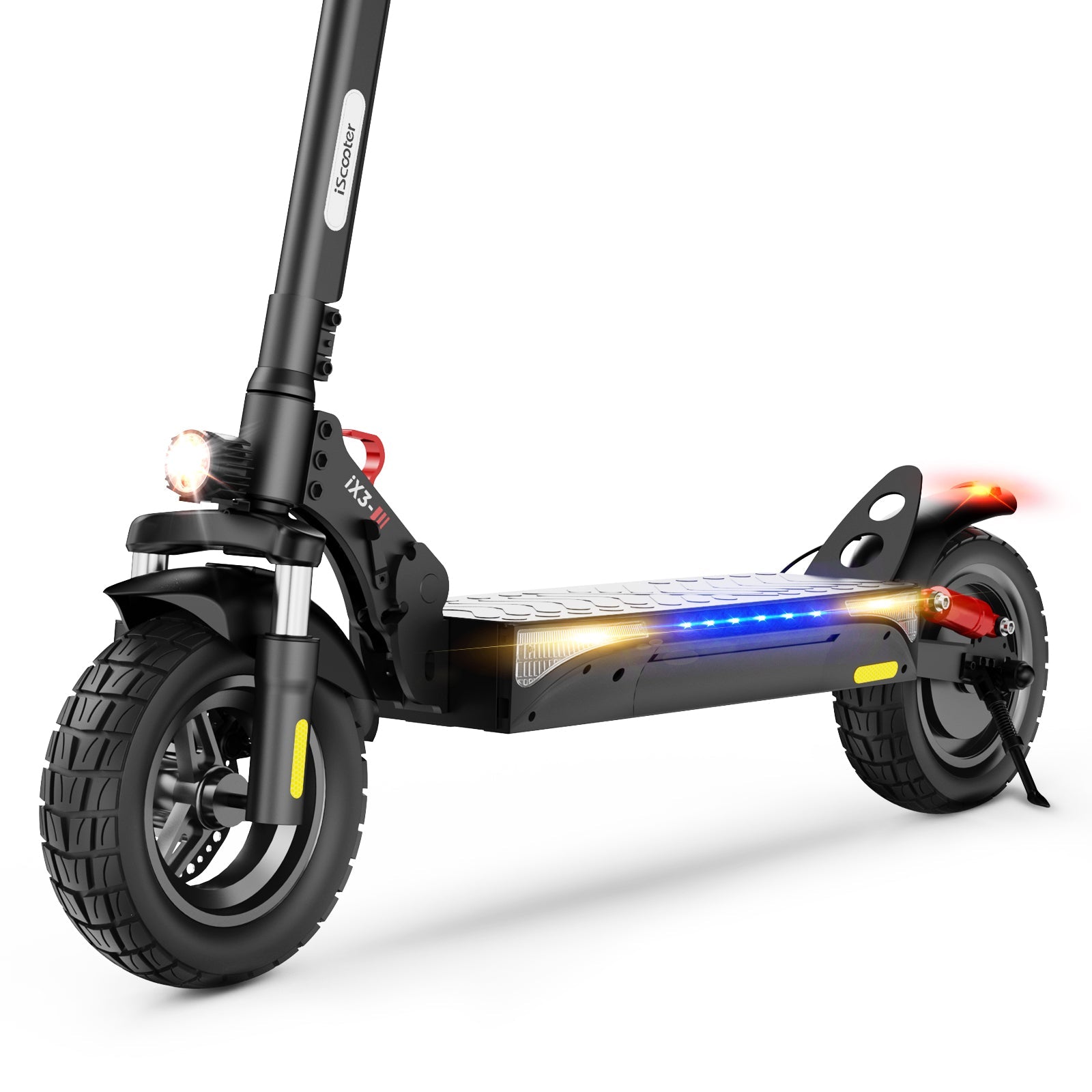

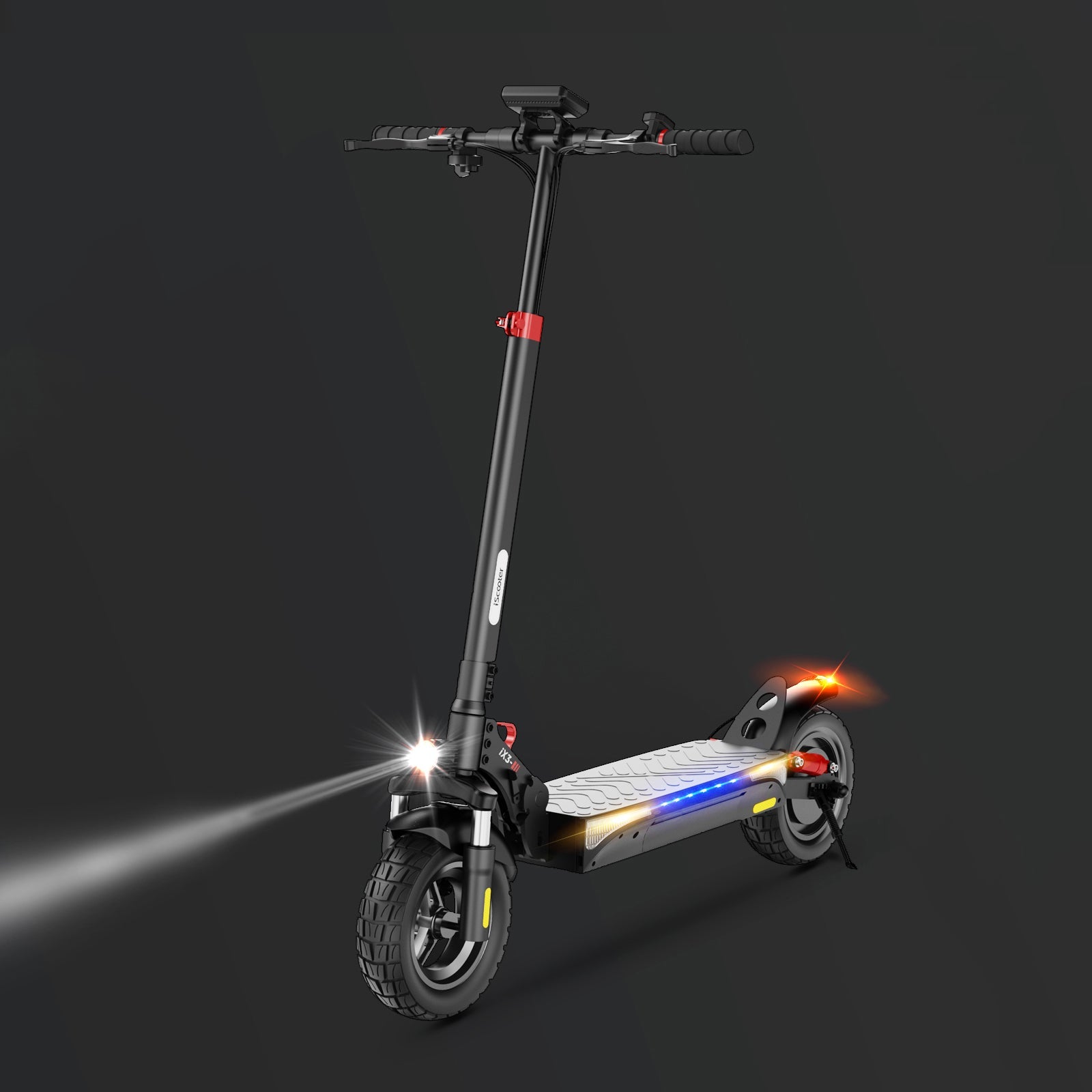

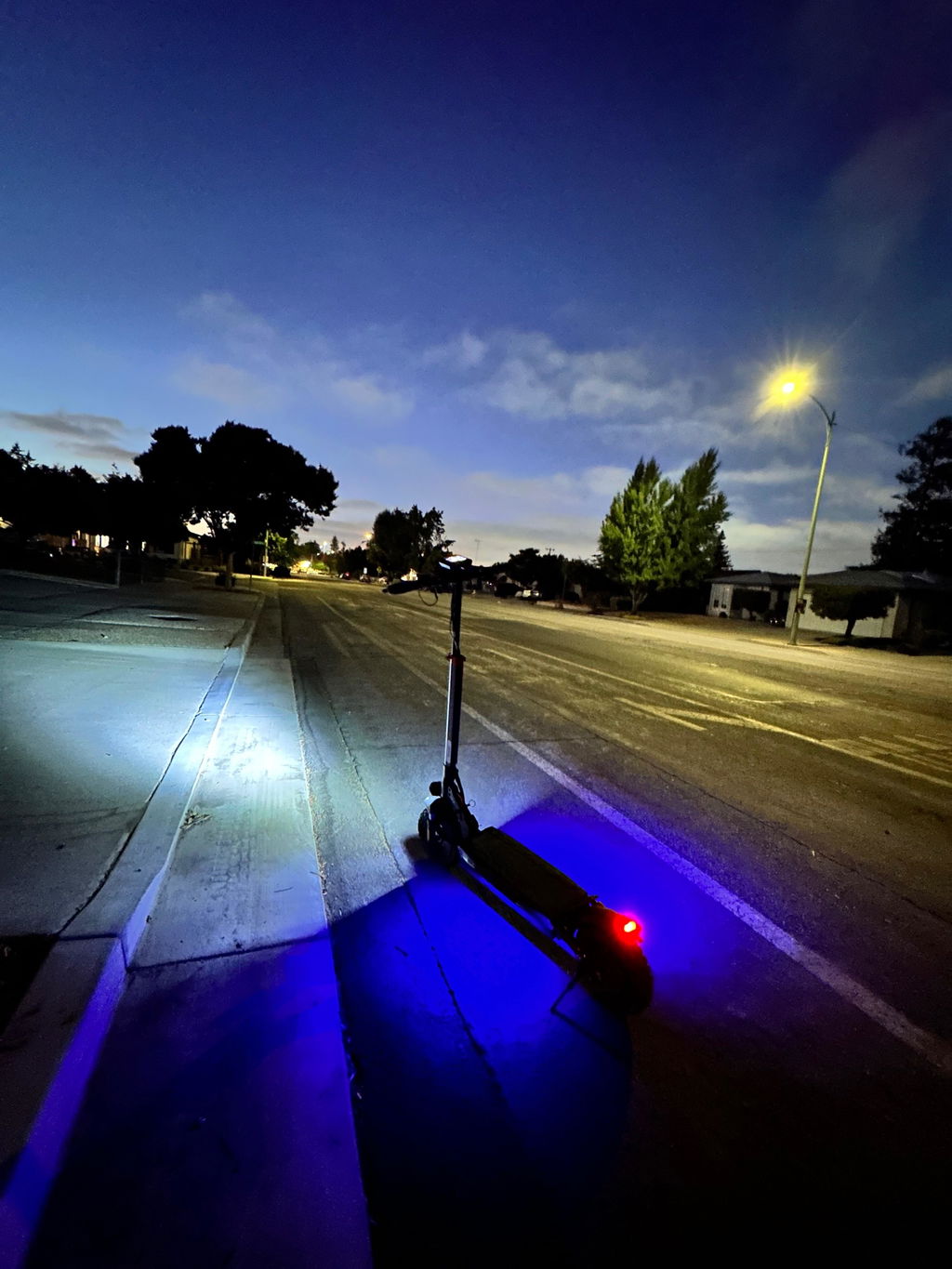

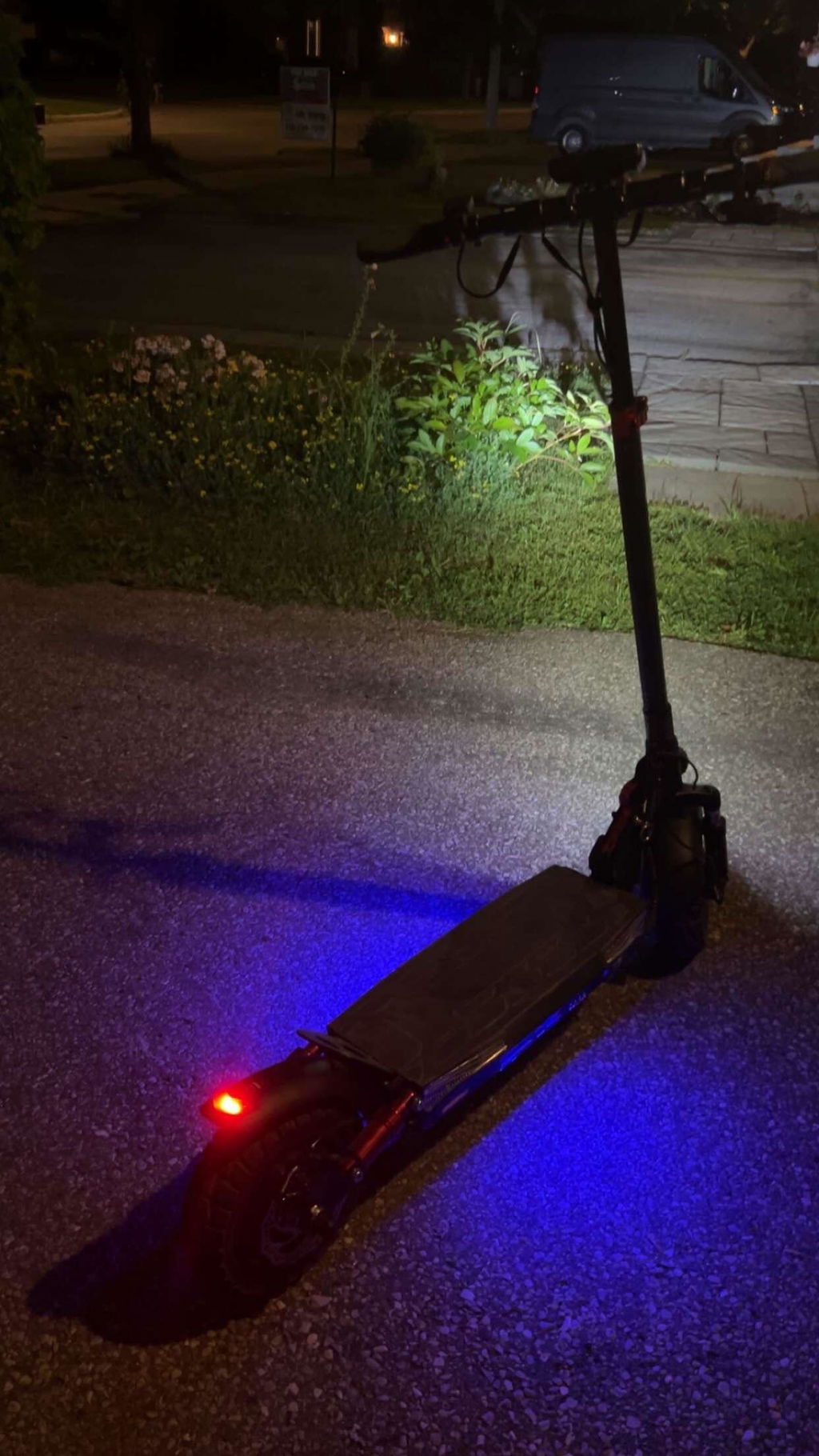

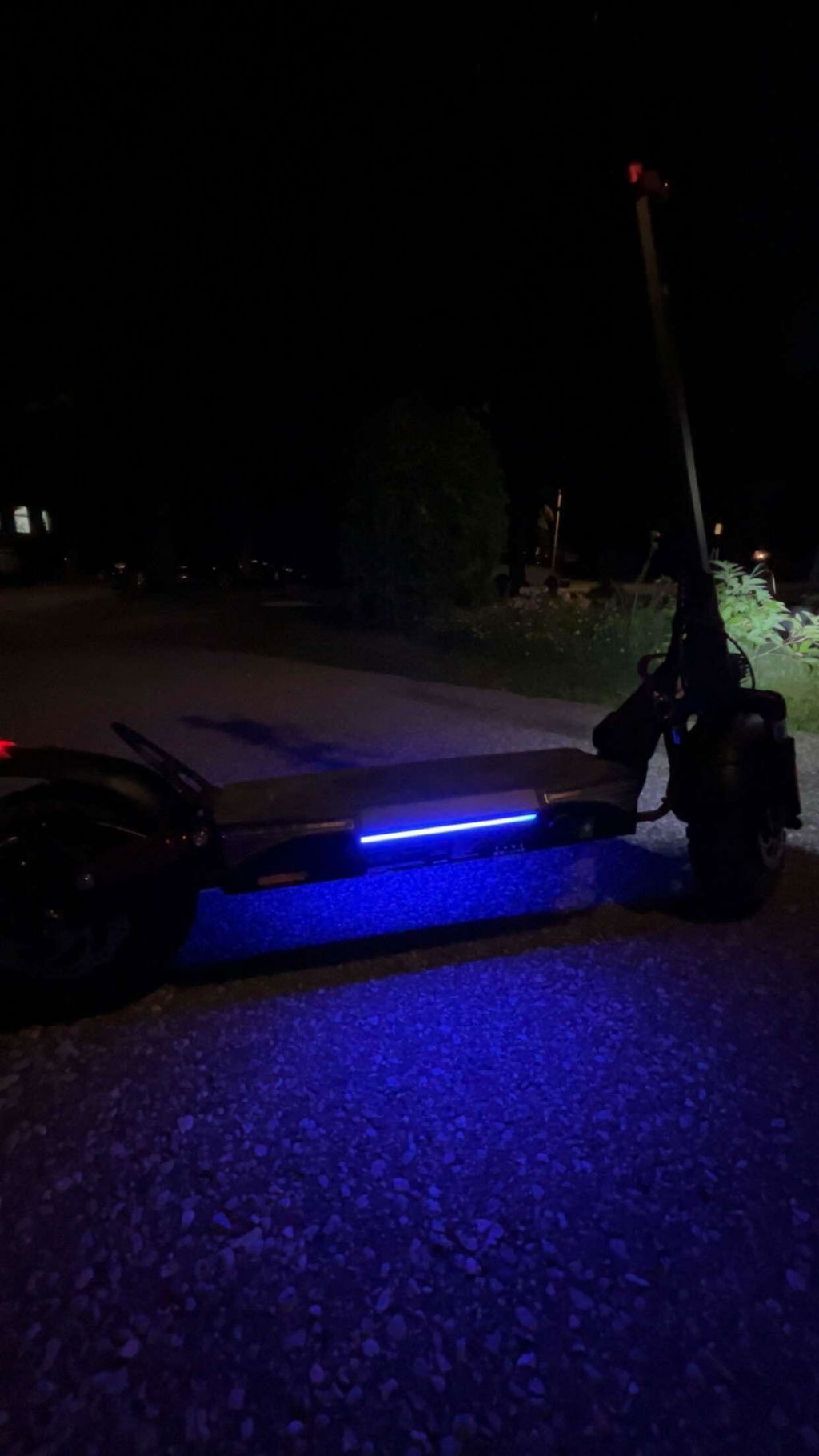

Led Lighting System
iX3 brings dark surroundings headlights to kick scooters. With the bright headlights and braking light, you'll be seen from every direction.
10Ah Range Battery
The 48V 10AH battery powers the iX3 Electric Scooter for 25 miles per charge.
