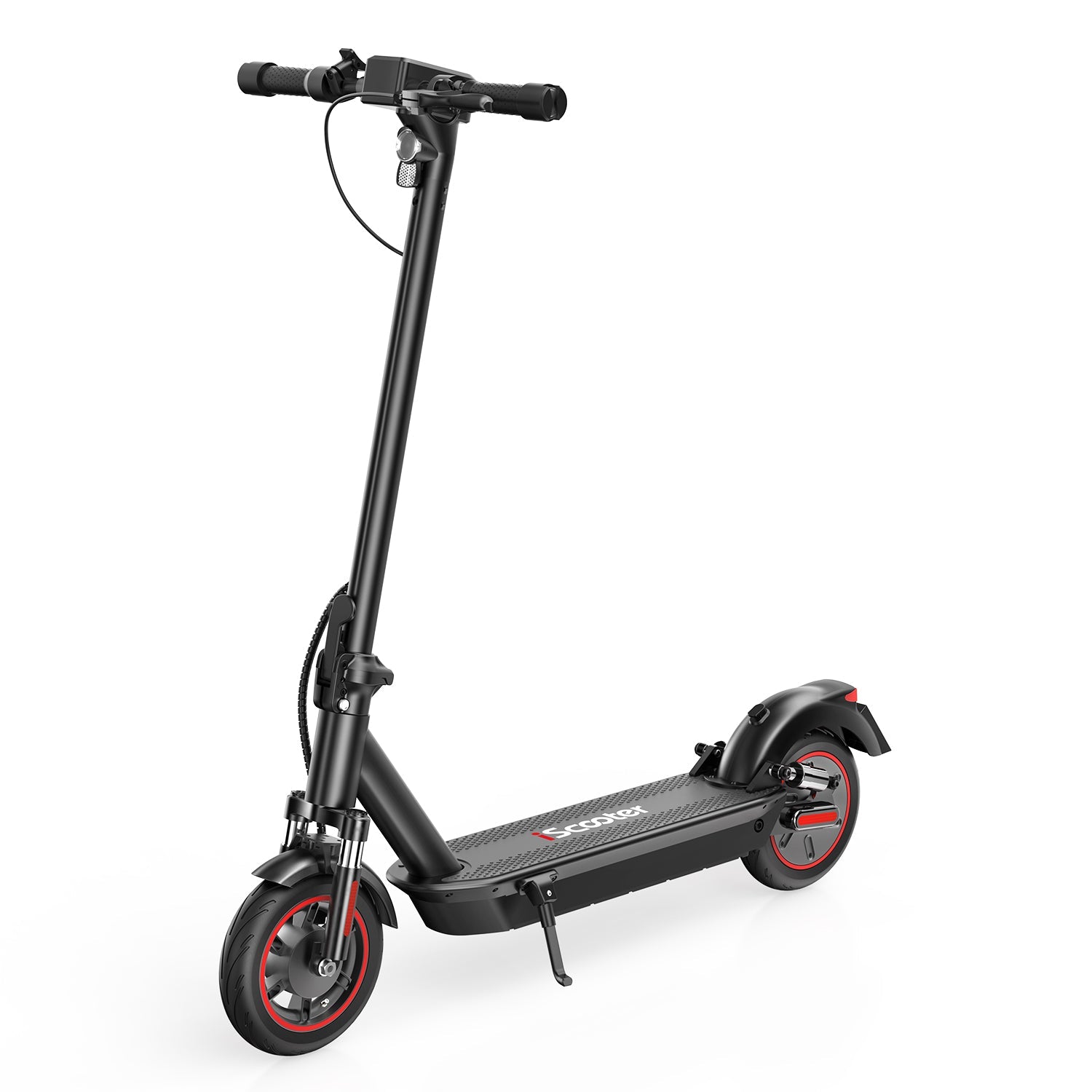

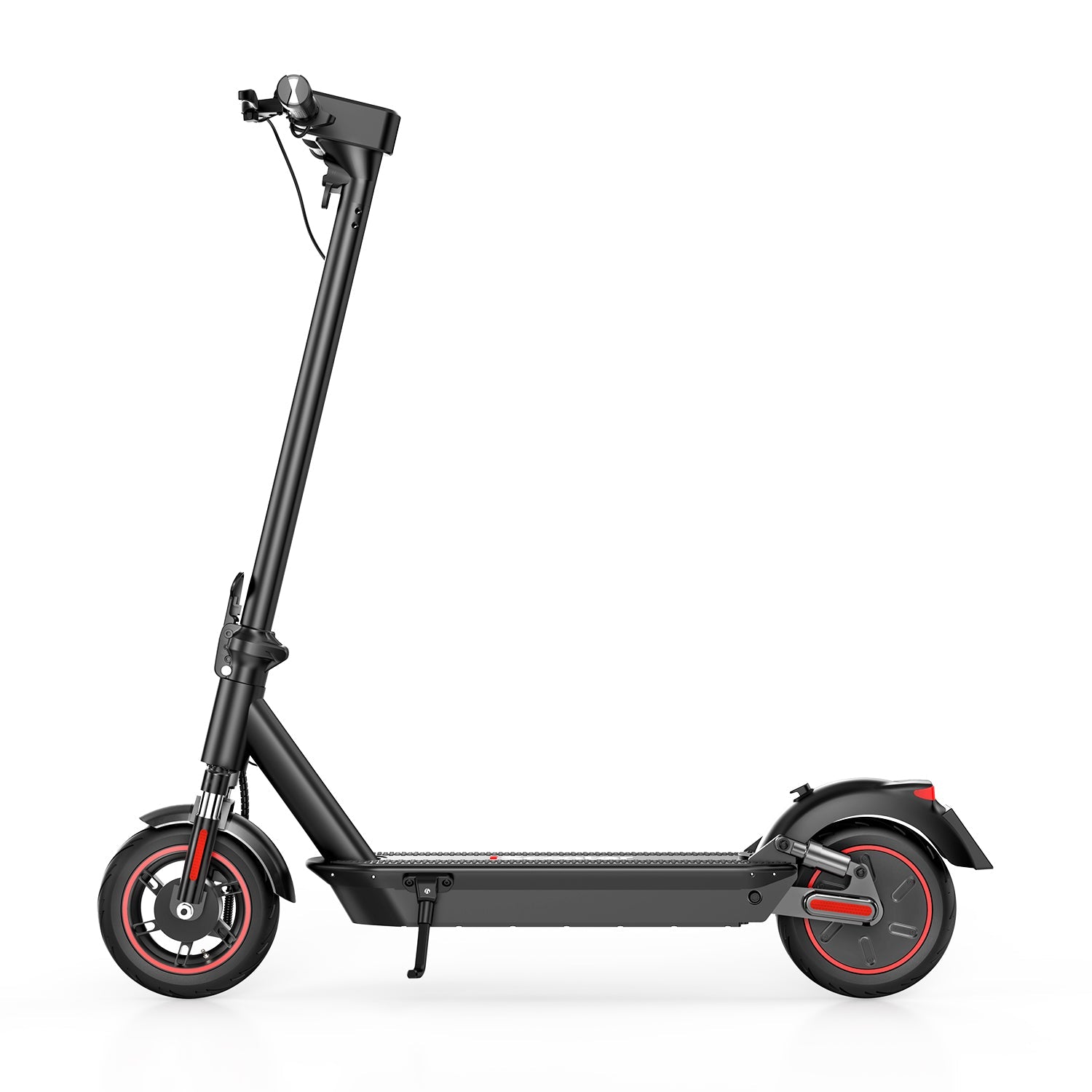

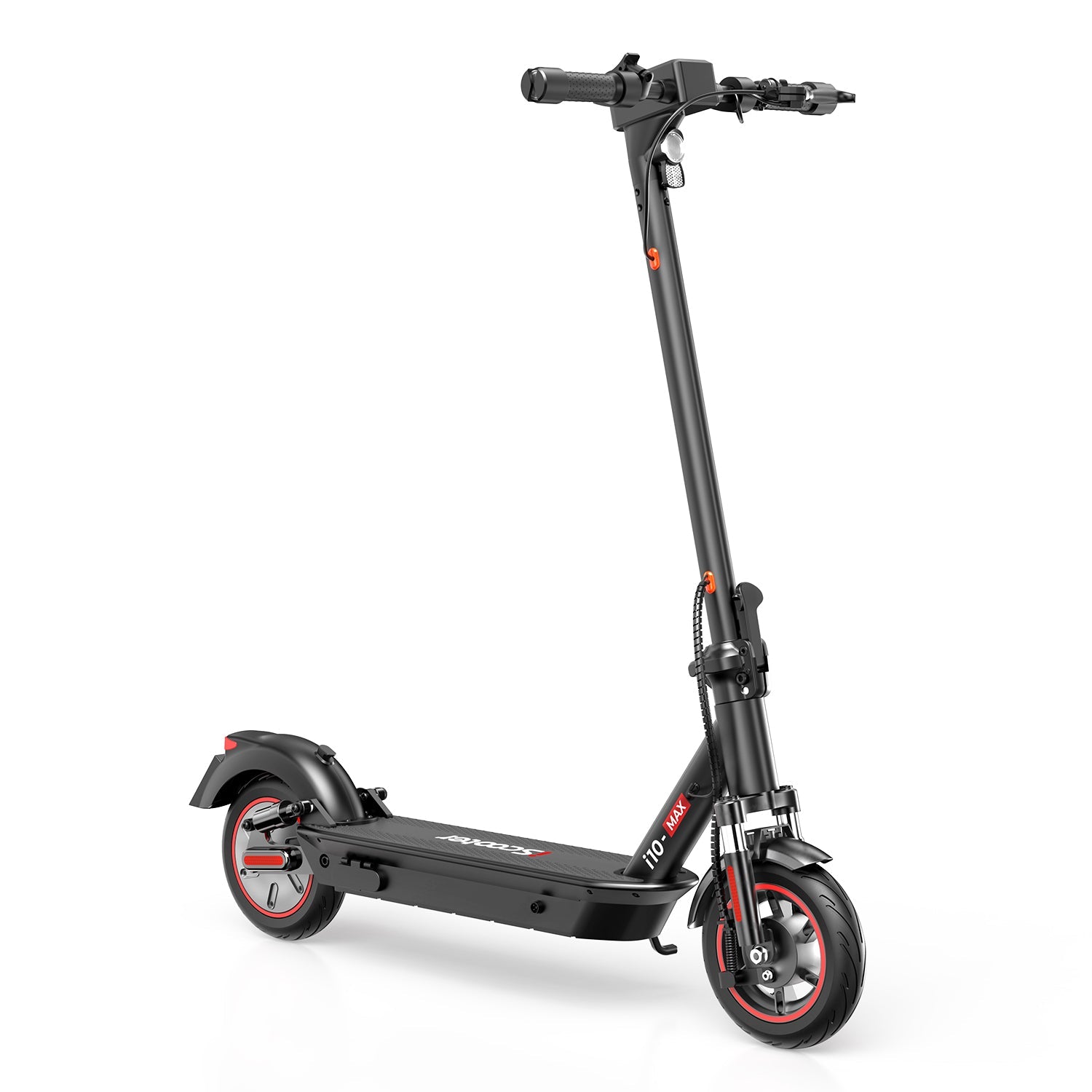

iScooter i10Max Commuter 650W/800W Electric Scooter
In accordance with UL 2272
Cover all e-scooter purchases
750W
Motor Capacity
48V 15.6Ah
Battery Capacity
28 MPH
Speed
8-9 Hours
Charging Time
50 Miles
Max Range
264 Lbs
Max Load
-
i10Max

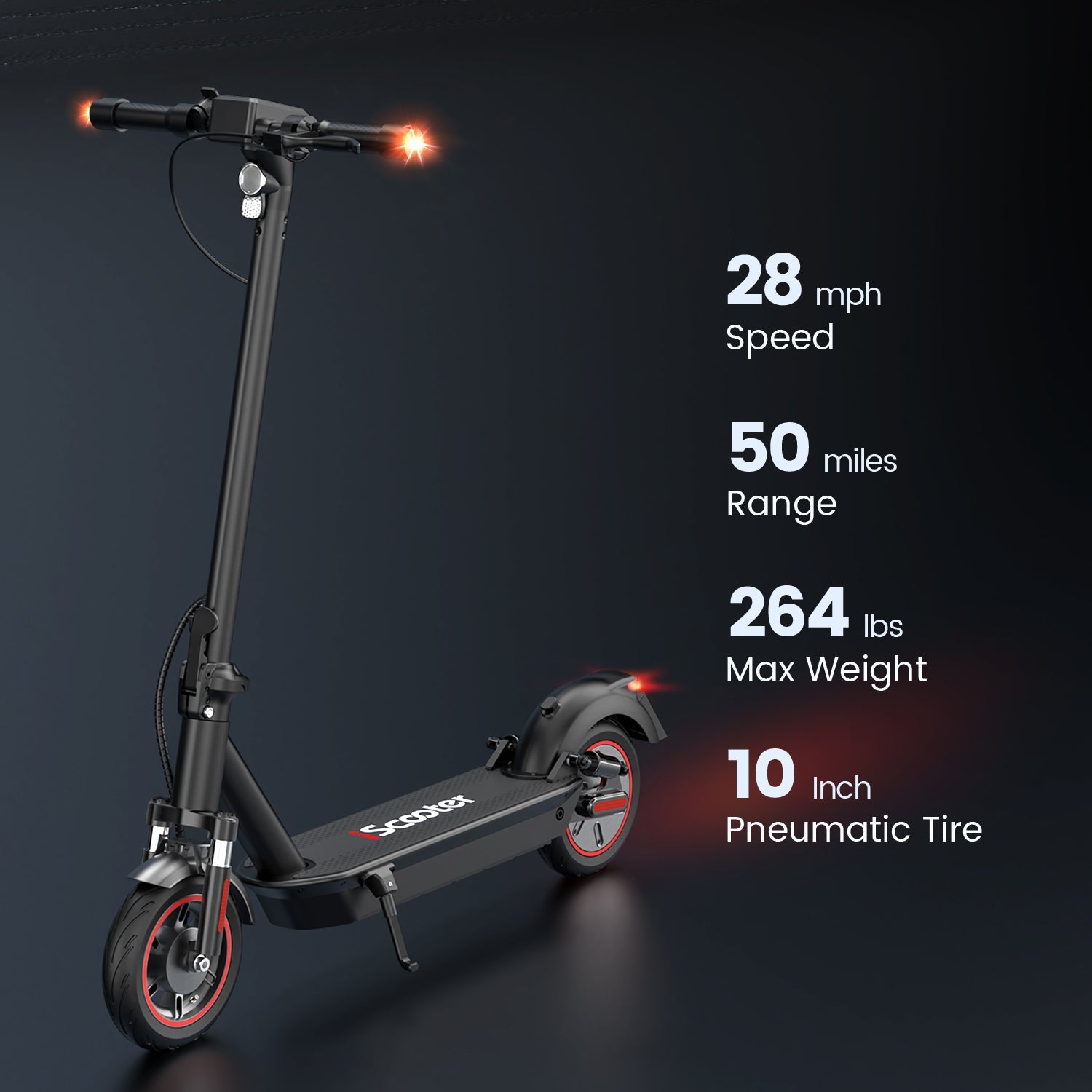

Maximum Speed
28mph (45Km/h)
Maximum Range
50 miles (80km)
Motor Power
750W
Speed Modes
4
Cruise Control Settings
Yes
Battery Recharging Time
8-9h
Battery Capacity
48V 15.6Ah
Water Resistance
IP54, Waterproof

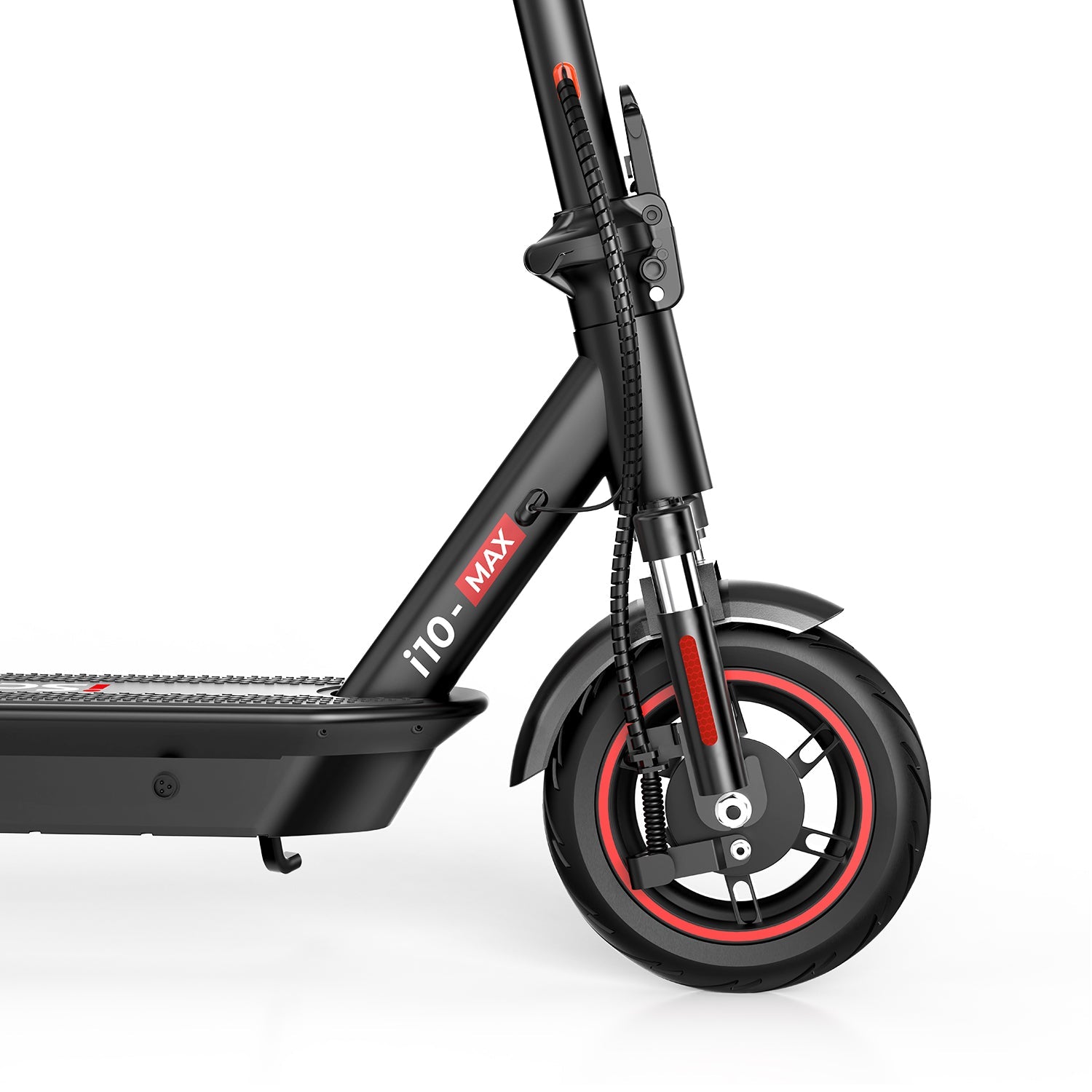

Suspension
Front and Rear Suspension
Wheel Type
Pneumatic tire
Wheel Size
10 inches/25.4cm
Tyre Pressure
54.6 V
SAFETY
Drive Type
Rear wheel drive
Front Brakes
EBAS electronic brake
Rear Brakes
Rear disc brake
Accelerator Control Type
Thumb press
Shock Absorbers
Front & Rear Double shock absorbers
Brake Control Type
Lever
Hanndlebar Grips
Foam
DIMENSIONS AND WEIGHT
Weight
46.7 lbs(21.2kg)
Foldable
Yes

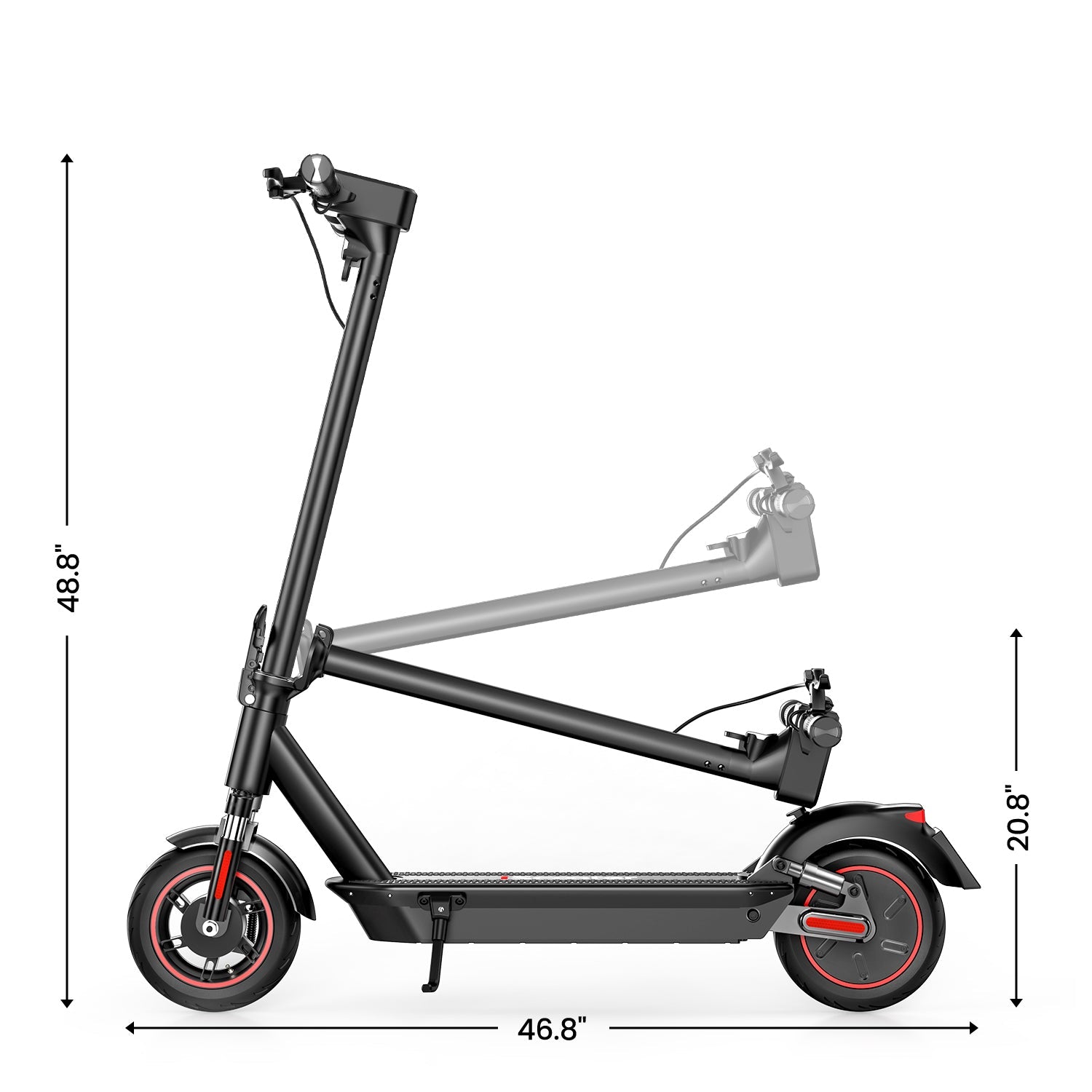

Folded Dimensions
Approx：46.8*20.8*21.6 inch/117*53*55CM
Unfolded Dimensions
Approx：46.8*20.8*48.8 inch/117*53*124CM
Foldable Handlebars
No
Adjustable Stem
No
Rider Maximum Load
264lbs(120kg)
Recommended Age
14 + Years
ACCESSORIES
Front Light Type
LED
Rear Light Type
LED
Reflectors
Yes
Mudguards
Built in mudguards
SMART TECHNOLOGY
Display
Multi-Functional LED Display
App
Yes
App Name
iScooter App
Compatibility
iOS, Android -
At iScooter Electric we are passionate about providing dedicated customer support, so you get total peace of mind with every electric scooter.
Q1.How long does it take to deliver?
The United States delivery time is 2-5 business days. We are working hard to ensure all orders arrive in a prompt and timely manner.Countries Cost Shipping Time Ship By Western United States FREE 2-4 Business Days UPS / FEDEX Eastern United States FREE 3-5 Business Days UPS / FEDEX
Q2:The front light and screen will be automatically shut off?
A:To save and protect the battery, when the scooter is stationary for 5-10 minutes, it will automatically enter power-save modes and turn off.
Q3:Unable to accelerate?
A:1. For your safety, by default, we designed for this, "Non-zero startup", it only needs one initial speed to start. Or you can connect "Minibot" APP, then, if you turn on Zero Start. 2. Error code (visible on LCD), please contact us to replace a throttle.
Q4:Motor hall Faults?
A:Take off the screws on the bottom of the scooter, then check the controller and replug the hall wire connecting terminal.
Q5:Controller Faults?
A:Take off the screws on the bottom of the scooter, then check and replug the controller connecting terminal.
Q6:Unable to power on?
A:1. Unplug your charger from the port, then click the power button to turn on your scooter. 2. Use the multimeter to measure the voltage of the battery, if the voltage is from 30-42V, it means there is no problem with the battery. If the voltage is lower than 30V, the scooter maybe not be turned on.
Q7:Not charging?
A:1. Check your charging cable and charging port for signs of damage, like breakage. Don't use damaged accessories. 2. Use the 220V ACA of the multimeter to measure the voltage of the charger and charger port, if there isn't reading, your scooter probably needs to replace the charger or charger port. if there is a reading, it probably needs to replace the battery.
Q8:Scooter seems to make noise?
A:It may be the disc brake noise. To remove the disc brake noise:First make sure the scooter is turned off. 1. Loosen two screws on the pump (not the screw on the rocker). 2. Adjust the position of the disc brake pump to ensure that the brake disc is in the middle of the two brake pads. 3. Keep the brake disc and brake pad not touching each other. 4. Hold the disk brake pump in the desired position, then retighten the screws to the pump. Or contact customer service to get an operation video.
Q9:The speed and range are not as same as described?
A:The speed and range will be effected by temperature of environment, the condition of road, the weight of rider(including all belongings ) -
-

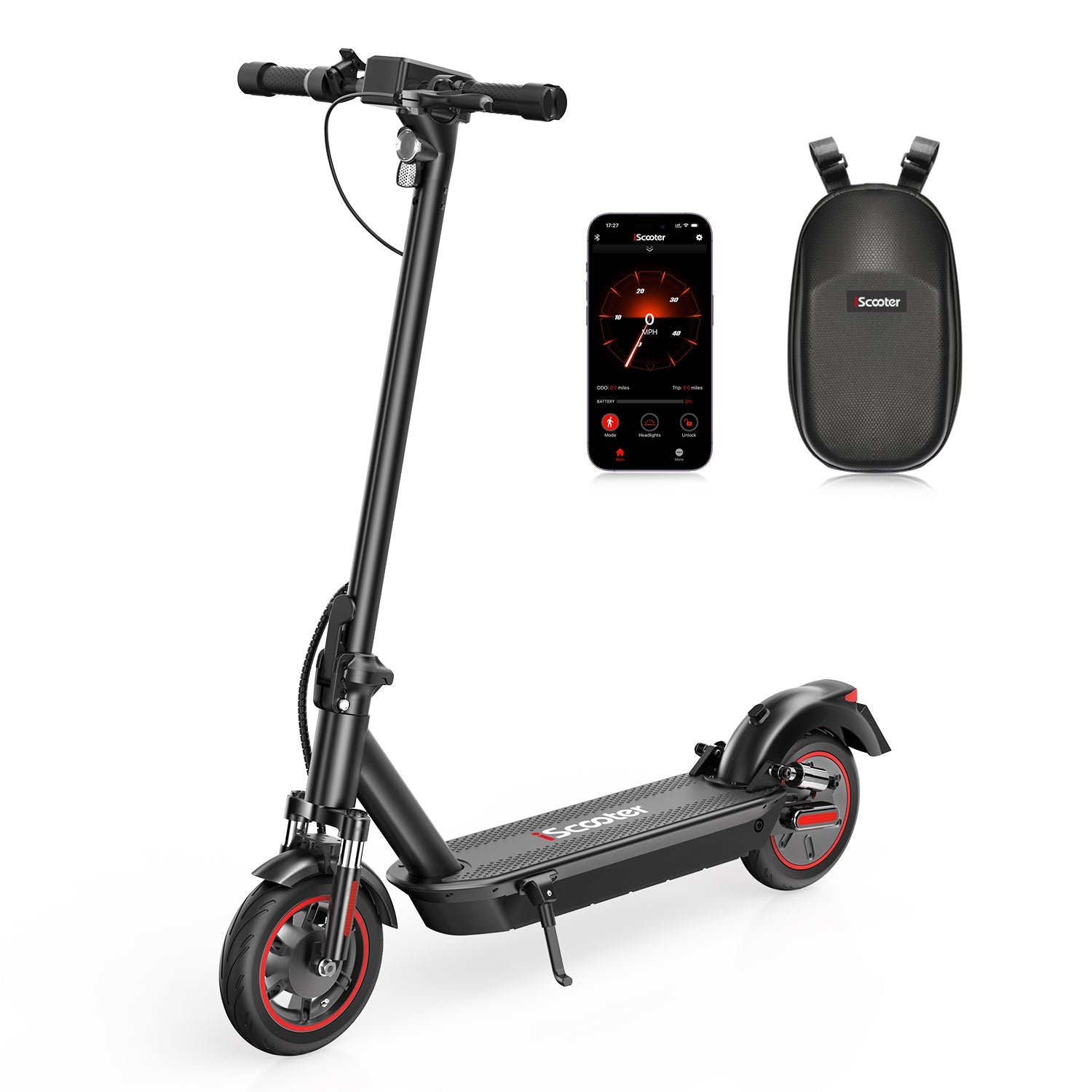

1 x i10Max Electric scooter
1 x Charger

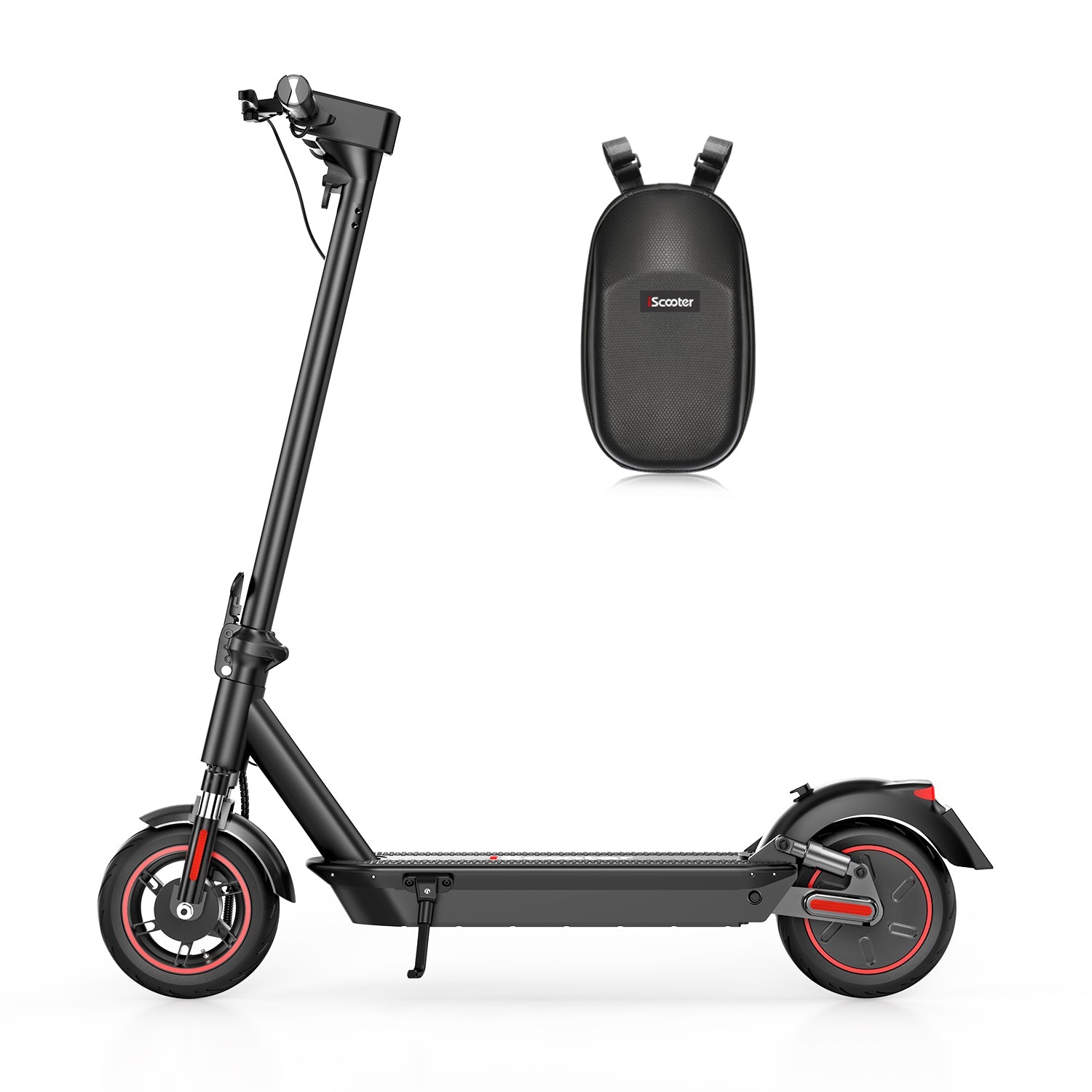

1 x Scooter bag
6 x Screws
1 x Allen Wrench
1 x Manual -
🚚Shipping- Free shipping on all orders to the United States, 2-5 business days delivery time.
💝 Return & Refund Guarantee- 30 Days Money Back & 12 Months Warranty.
📞Customer Support- Please email to support@iscooterglobal.com. Our experts will reply within 24 hours.
Large Capacity Battery
750W Powerful Motor
Cruise Control & 4 Speeds
Walk Mode-9MPH (15km/h)
ECO-18MPH (29km/h)
D-21MPH (34km/h)
S-28MPH (45km/h)
EABS+Dual Brake System
IP54 Waterproof Level
IP54 means the scooter is resistant to water splashes from any direction.Safe to ride on wet roads.

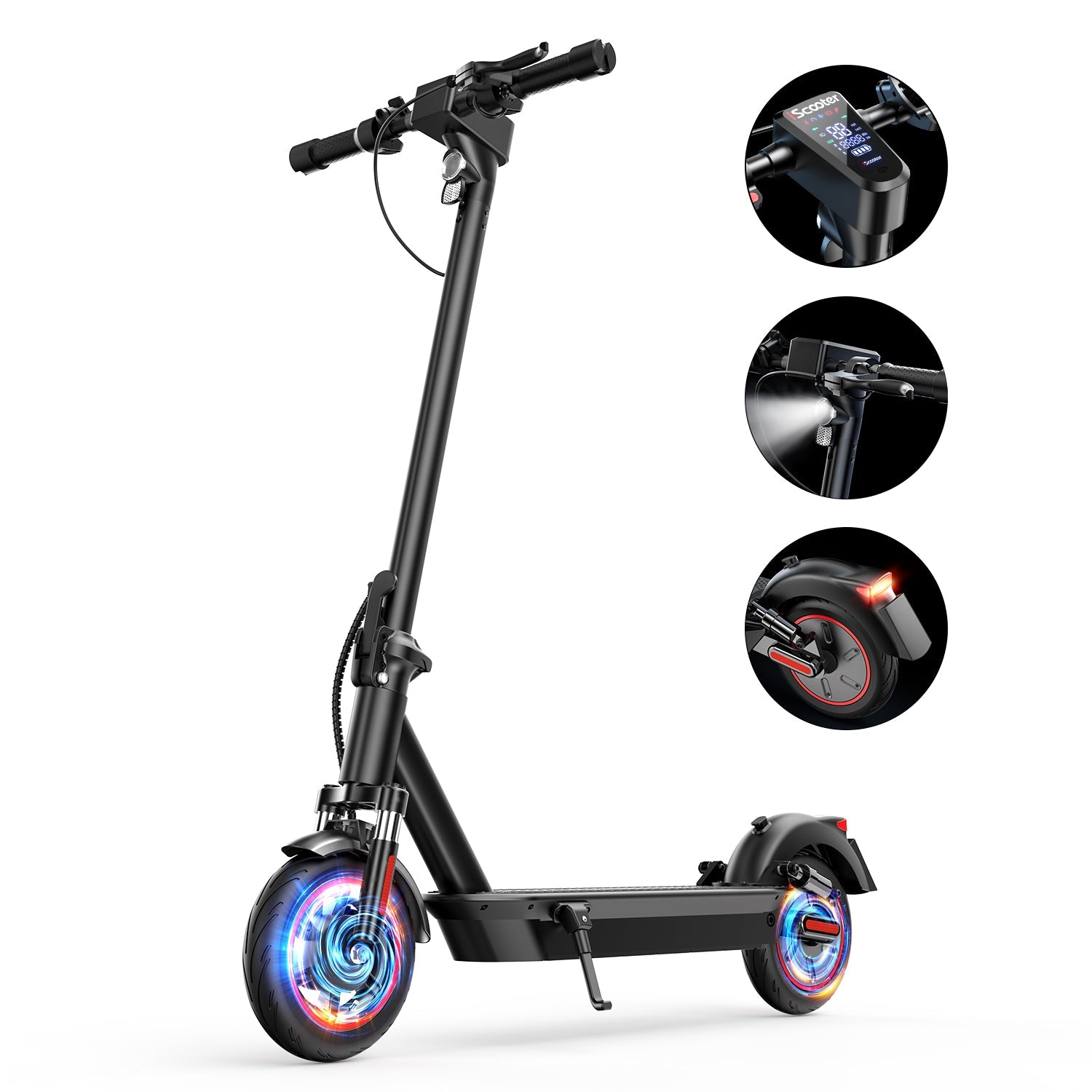

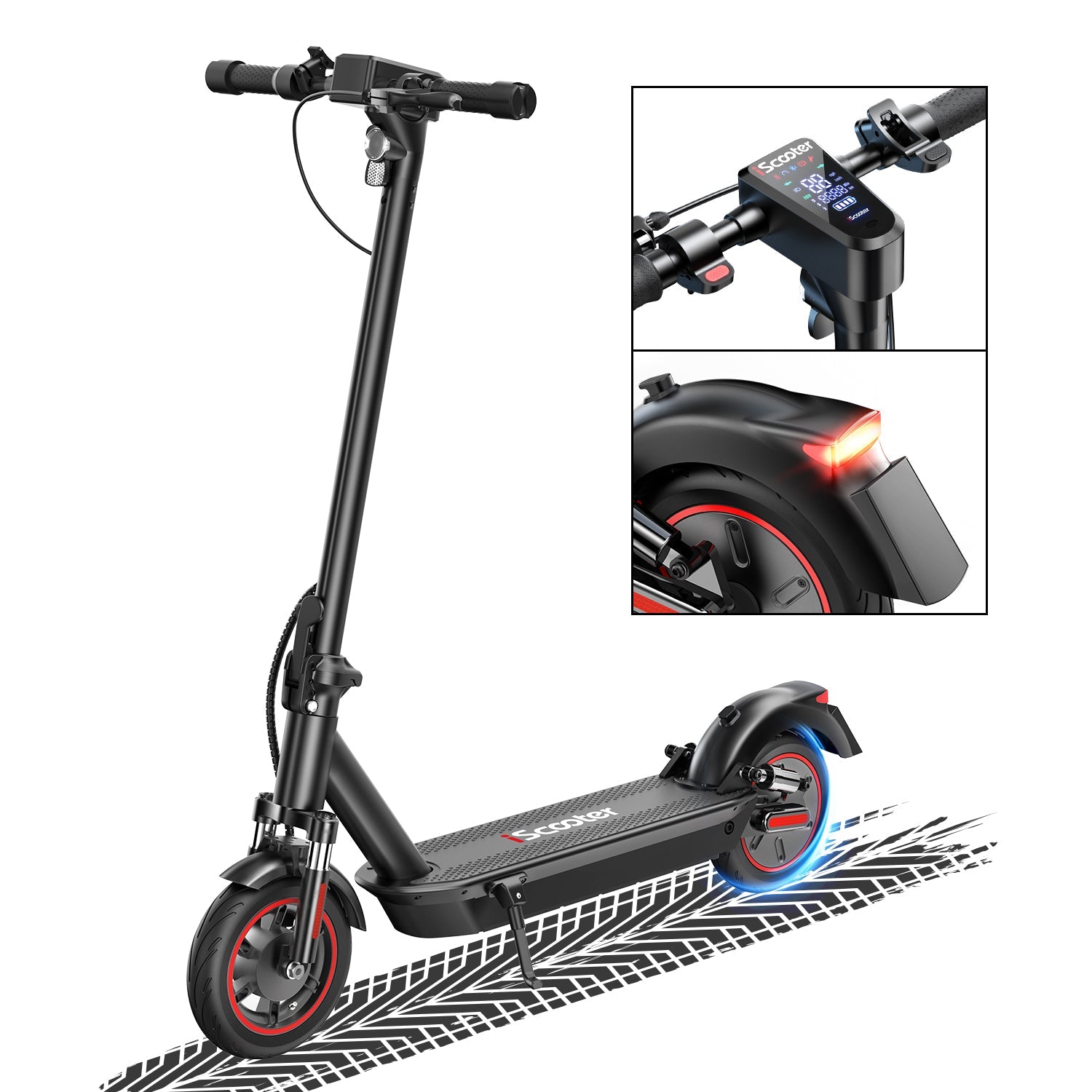

Bright Front LED Light & Flash Red Tail Light
Bright light system ensures that you can see and be seen at night for all-around safety.

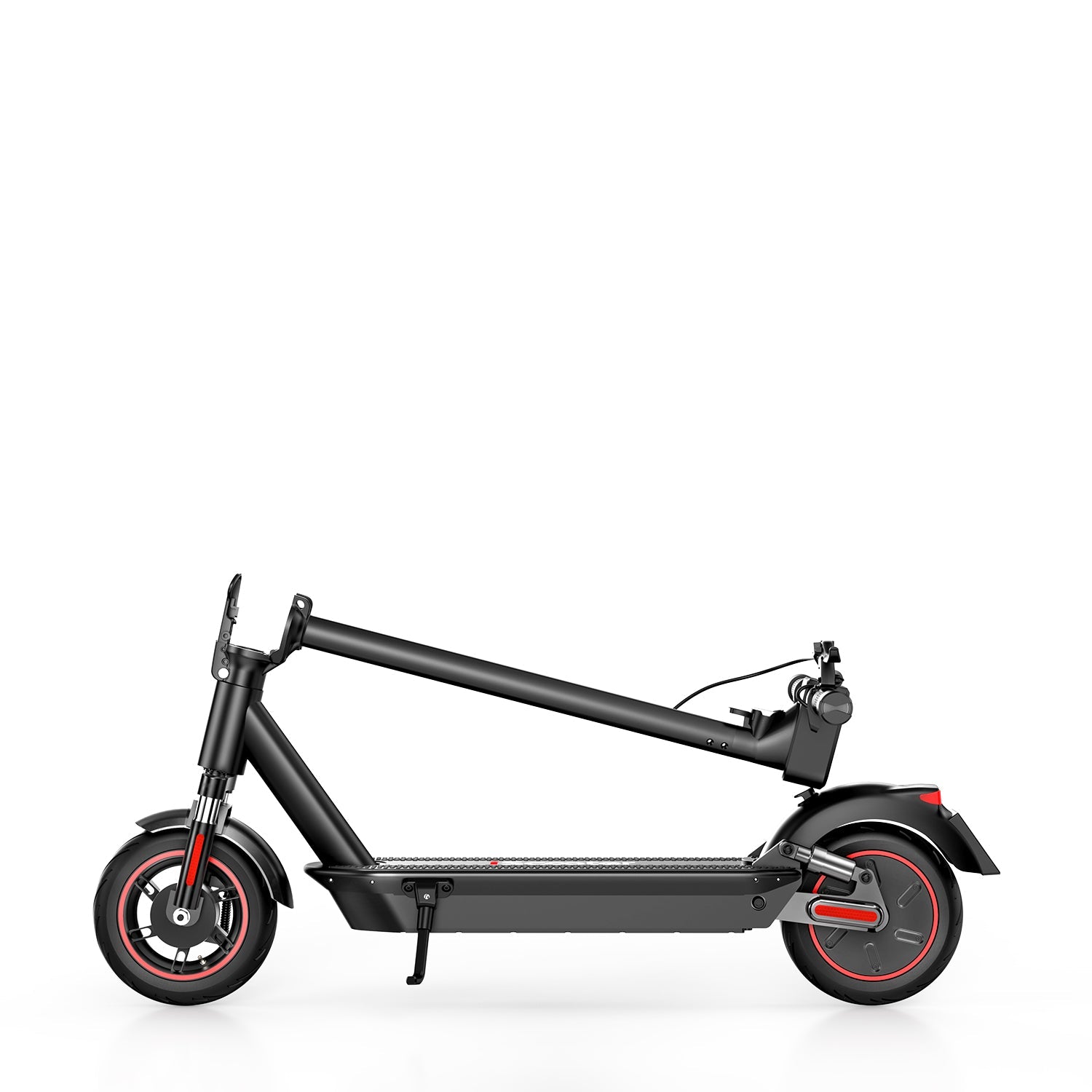

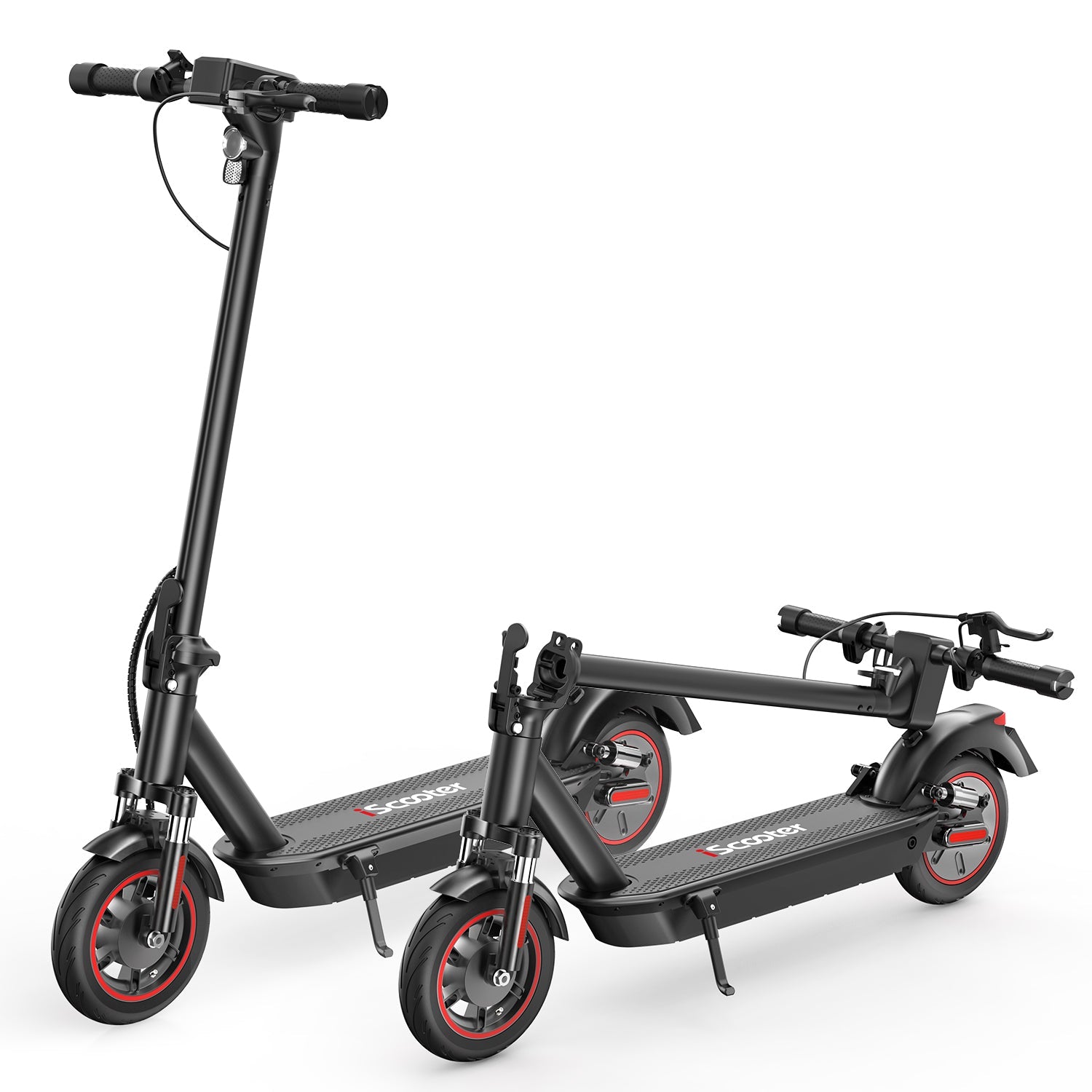

One - Step Folding System
Portable Folding Design, Easy to Carry and Store.
10" Pneumatic Tires
10" pneumatic tires can bring you an excellent riding experience, no bump.

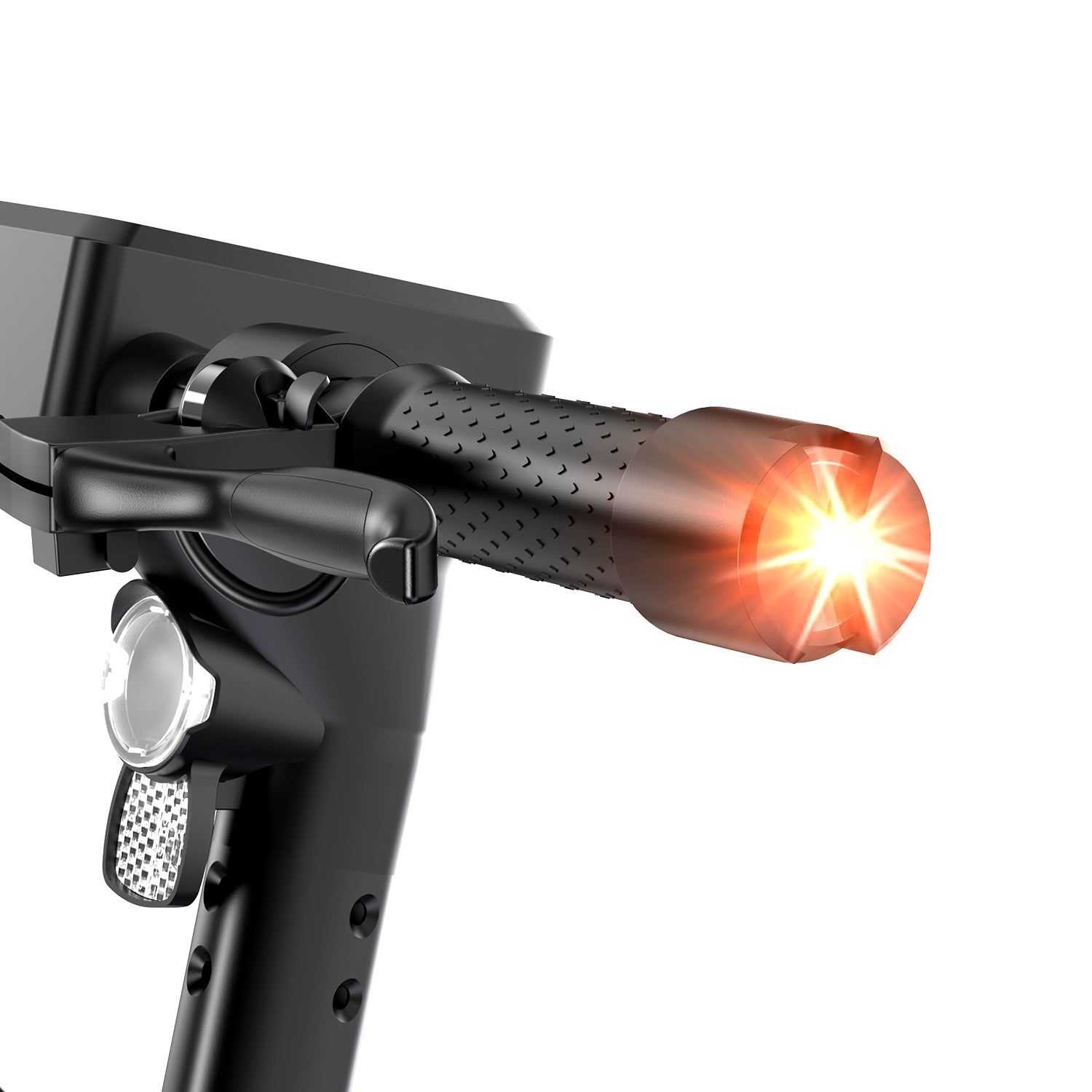

Turn Signal Light
Left and right handle turn signals design to remind the car behind, to ensure safety when turning

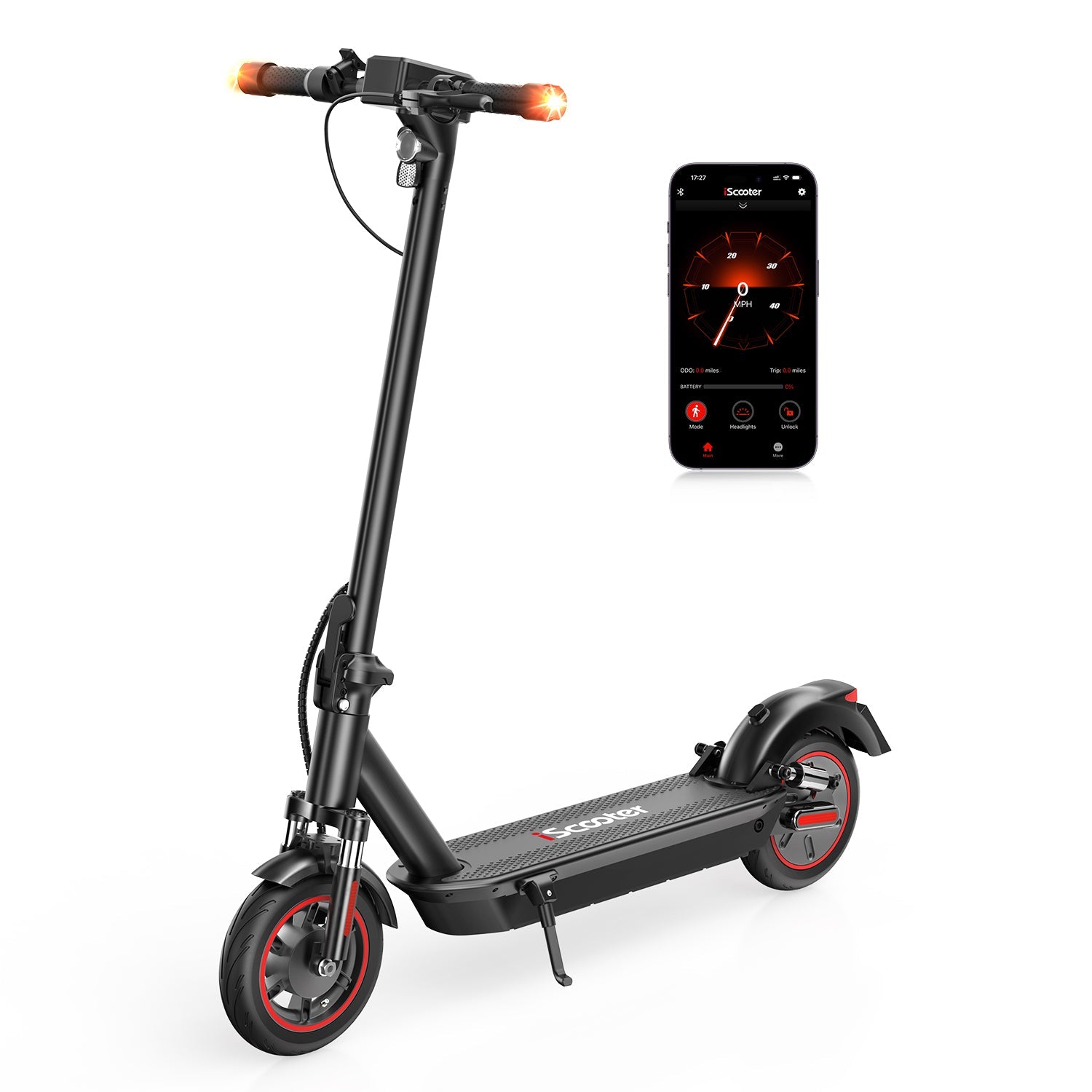

iScooter APP Control
Four Speed Mode, Battery Level, Map Navigation, Distance, Cruise Control. lighting pattern and more.
Get Some Inspirations
|
|
|
|
Model |
i10 | i10Max |
|
Product Weight |
44lbs | 46.7lbs |
|
Motor Power |
650W | 800W |
|
Maximum Speed |
25mph | 28mph |
|
Maximum Range |
28miles | 50miles |
|
Battery Capacity |
15Ah | 15.6Ah |
|
Tires |
10″ Pneumatic Tire | 10″ Pneumatic Tire |
|
Driver |
Rear | Rear |
|
Suspension Type |
Front & Rear Dual Suspensions | Front & Rear Dual Suspensions |
|
Support APP |
✔ | ✔ |
|
MAX. LOAD |
264 lbs | 264 lbs |
